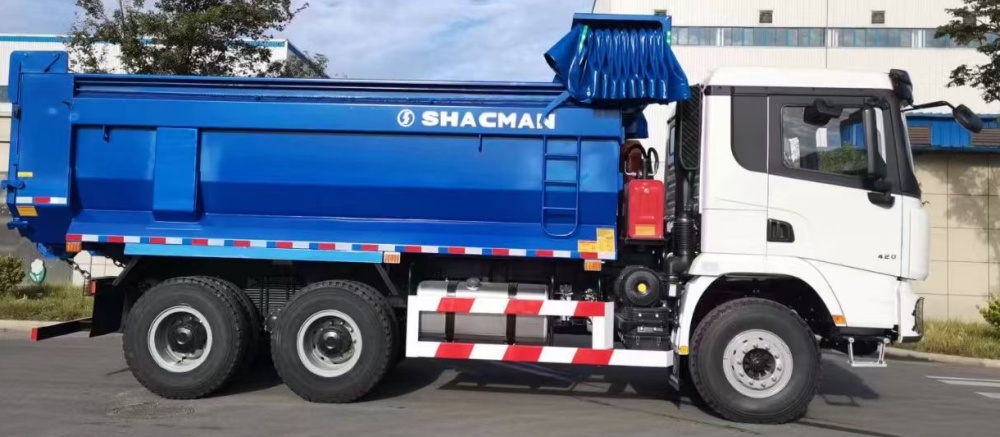

20cubic meters SHACMAN X3000 10 tires dump tipper vehicle Cummins engine for sale
main technical parameters of SHACMAN X3000 10 tires dump tipper vehicle Cummins engine is as below.
Model | SX32556V354C |
Drive type | 6×4 |
Type | Dump Truck |
Weight | |
Complete kerb mass(kg) | 15,500 |
Loading capactiy(kg) | 34,500 |
GVW(kg) | 50,000 |
Performance | |
Max.speed(km/h) | 70 |
Min.ground clearance(mm) | 314 |
Approach/Departure angle(°) | 28/30 |
Max.gradeability(%) | 33 |
Dimensions | |
Max.length(mm) | 9,700 |
Max.width(mm) | 2,490 |
Max.height(mm) | 3,450 |
Wheelbase(mm) | 3,575+1,400 |
Engine | |
Make | CUMMINS |
Type | ISME420 30 |
Rated Output(kw/HP) | 306/420 |
Maximum torque(N.m)/rpm | 2,010/1,200 |
Rated speed(r/min) | 1,900 |
Displacement(L) | 10.8 |
Emmission Standard | Euro III |
Transmission | |
Make | FAST GEAR |
Model | 12JSD200T-B |
Control type | Manual, with sychronizer |
Gear Shift | 12 forward and 2 reverse |
Gear ratio | 14.38 11.18 8.49 6.40 4.83 3.77 2.98 2.31 1.76 1.32 1.00 0.78 R13.76 2.85 |
Transfer case | ZQC2000 |
PTO | QH50 |
Clutch | |
Make | EATON |
Type | Spring plate,diaphragm spring |
Diameter(mm) | φ430 |
Retarder | |
Make | FAST GEAR |
Model | FHB400 |
Braking system | |
Type | Drum brake |
Service brake | Dual-circuit compressed air brake |
Park brake | Power spring brake acting on rear wheels |
Auxiliary brake | JACOB |
Frame | |
Type | Parallel straight ladder structure of type "C" section |
Dimension | 850×300(8+7), with double layers |
Suspension | |
Front | Semi-elliptic springs |
Rear | Trapezoidal leaf springs with stabilizer bar |
Steering system | |
Type | ZF technology integral inner circulation power steering |
Axles | |
Make | HANDE--MAN |
Front axle | 9.5T |
Rear axles | 16T×2 Double reduction driving axles with differential locks and hub reductors |
Ratio | 5.92 |
Tires | |
Type | 12R22.5 |
Numbers | 10+1 |
Fuel tank | |
Tank capacity(L) | 400 |
Material | Aluminium |
Electrics system | |
Type | 24V |
Battery | 180Ah |
Others | Reversing buzzer, Rear frame lamp, Rear lamp protectors, 2 kg fire extinguisher, Fleetguard air filters |
Cabin | |
Type | SHACMAN X3000, flat roof |
Standard equipments | 1. Hydraulic suspension for cabin 2. Automatic A/C 3. Hydraulic suspension driver seat 4. One bunker 5. Hydraulic reversal cab 6. Metal bumper 7. Electric windows lifting system(with MABUCHI motor) 8. Cruise control system switch 9. Radio with USB |
Dumper body | |
Lifting system | Φ181 Front-lifting system |
Body type | U-type, bottom 10mm side 8mm |
Body dimensions(mm) | 5,600×2,300×1,500 |
Volume(m³) | 20m3 |
high quality SHACMAN X3000 dump tipper truck 20cubic meters for sale
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
