best price 2000kgs ISUZU double-cab dump tipper vehicle for sale
ISUZU 4*2 LHD dump truck
ISUZU 100P double-row driver cab
4*2 LHD
2765mm wheelbase;3360mm wheelbase
7.00R16 tires*6+1 spare
ISUZU 4KH1CN5LS 98 diesel engine, Euro 5
ISUZU MSB 5+1 gears, manual type
Curb mass: 2985kgs
Max Rated mass(approximate):2000kgs
Double-row: Overall dimension(L*W*H): 5300×1860×2180（mm）
Dump tipper box dimension(L*W*H):2600*1800*380/450(mm),
3mm thickness side steel plate and 4mm thickness bottom steel plate, rear-door opened, middle-installed cylinders lifting and tipping.

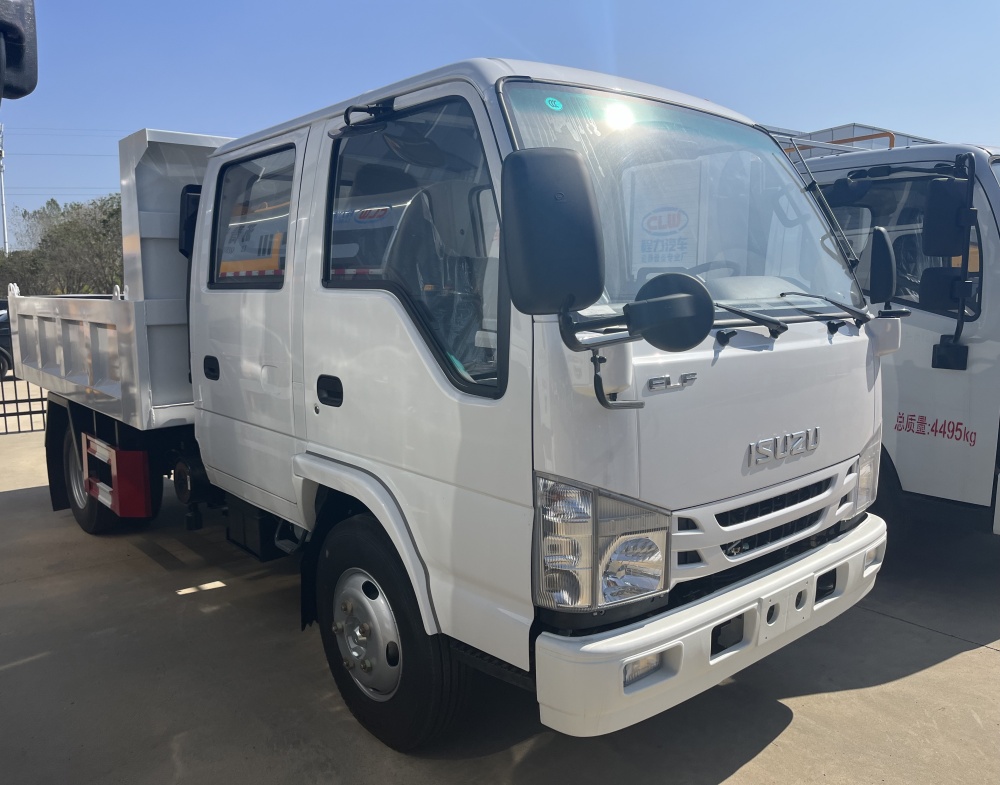

More pictures of ISUZU double-cab dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. are as below.
Main technical parameters of ISUZU double cabs dump tipper truck 4*2 LHD is as below.
Items | Descriptions | Specifications and Types |
General | Truck Name | Isuzu LHD 2tons dump tipper truck for sale |
Drive Type | 4*2 LHD | |
Fact Loading Capacity(kg) | 2000-3000 | |
Curb Weight (kg) | 2670 | |
Overall Dimensions L*W*H(mm) | 5300×1860×2180 | |
Engine | Engine Model | 4KH1CN5LS |
Engine Brand | ISUZU | |
Fuel Type | Diesel | |
Power | 98hp | |
Emission Standard | Euro 5 | |
Displacement(ml) | 2999 | |
Chassis | Chassis Brand | BJ |
Front/Rear Axle Load(KG) | 1504/1425 | |
Tire No. | 6 | |
Tire Specification | 7.00R16 | |
Wheelbase (mm) | 2765 | |
Axle No. | 2 | |
Gear Box | Isuzu MSB 5+1speed forward with 1 reverse, manual | |
Steering Wheel | Left Hand Drive with power-assisted, | |
Tipping system | Box inner dimension(mm) | 2600*1800*380/450(mm), |
Box material | Carbon steel, side sheet: 3mm thickness, bottom 4mm thickness | |
Hydraulic cylinder position | Double cylinders at the center of the truck bottom | |
Discharge type | Rear tipping | |
Remark | Clients choose to install environmental protection hydraulically cover | |
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
