Customized 22cubic meters Garbage Container Hook Lift Hydraulic Roll off Garbage Truck Waste Management SINOTRUK HOWO 6*4 RHD for KENYA
Second order of 2 units of 22cubic meters Garbage Container Hook Lift Hydraulic Roll off Garbage Truck Waste Management SINOTRUK HOWO 6*4 RHD for KENYA are finished.
They are the second order for the company from Kenya. The first order, they placed an order of 3 units of HOWO detachable container garbage trucks. After three months, they place the second order of two units of hook lift hydraulic roll off garbage trucks.

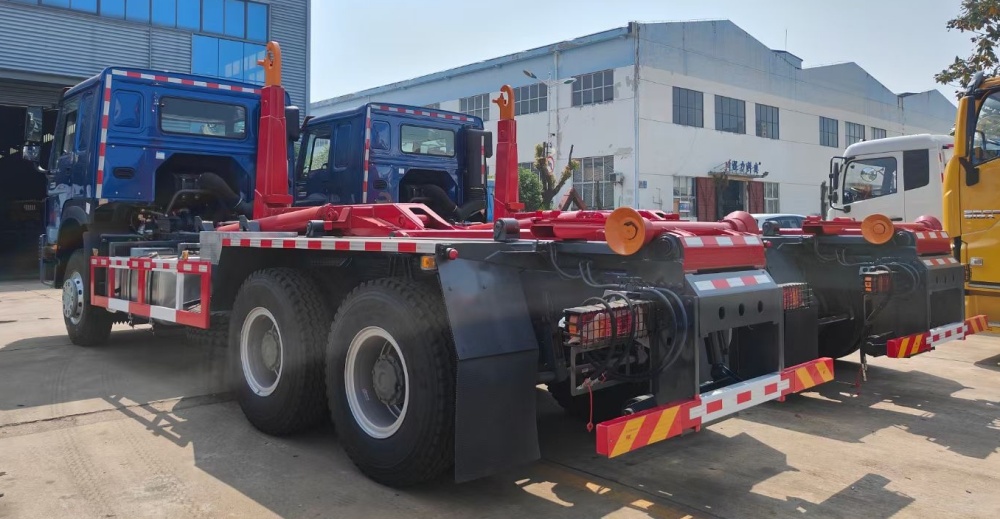

first order of three units of SINOTRUK HOWO hook lift hydraulic container garbage trucks

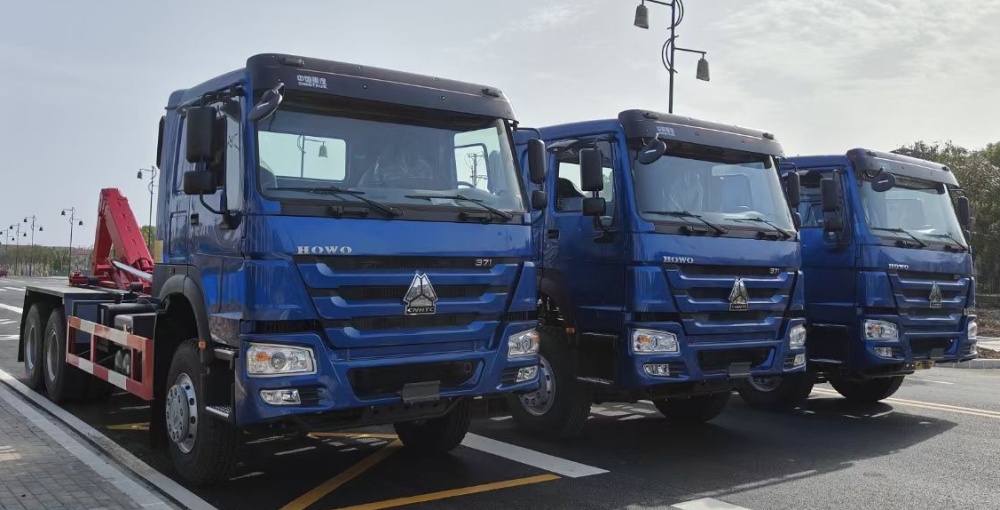

second order of 2 units of SINOTRUK Howo RHD detachable container garbage trucks for KENYA

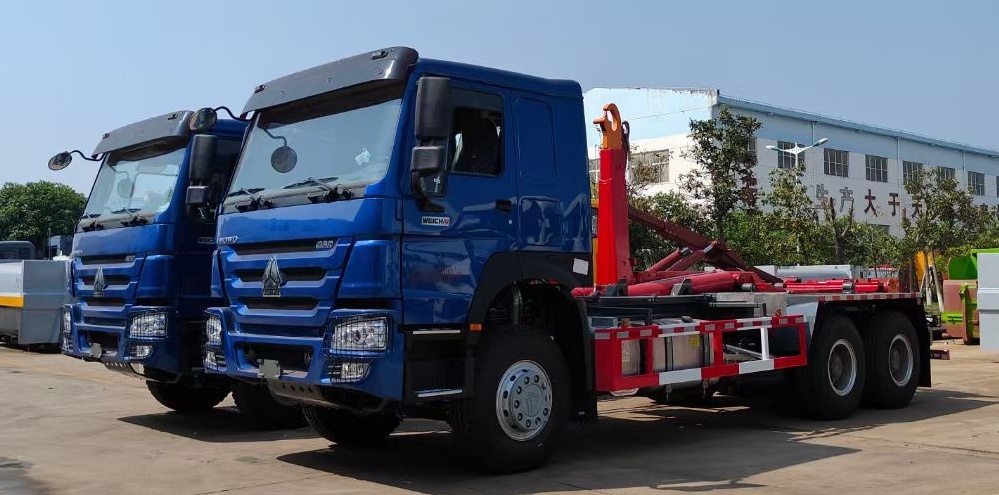

high quality hook lift garbage truck SINOTRUK HOWO 22CBM for sale
best price and high quality SINOTRUK HOWO garbage truck for sale
Description:
1. Garbage Bin with different size options of waste collection truck: 2cbm to 12cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
| Truck model | ZZ1257M4641W |
| Drive style | Left or right hand drive |
| Drive model | 6x4 |
| Dimensions(LxWxH) | 8865x2500x3290 MM |
| Cargo body | 20 cbm |
| Loading weight | 20ton |
| Engine | WD615.69, 336hp |
| Emission standard | EURO II |
| Front axle | HF7, 7tons loading capacity |
| Rear axle | HC16, 16tons loading capacity |
| Transmission | HW13710, 10 forward & 2 reverse. |
| Steering system | ZF8118, hydraulic steering with power assistance |
| Tires | 295/80R22.5, 10+1spare |
| Upperstructure Specification | ||
| Garbage Hopper | Dimension | 5600×2300×1500mm |
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
| Volume | Ground type, 18CBM or 20cbm or 22cbm | |
| Loading Capacity | 16tons or 18Tons | |
| Thickness | 5mm, Carbon Steel Q235B | |
| Dump type | Hydraulic cylinder lifting and self-loading | |
| Dump angle | ≥45° | |
| Hydraulic system pressure | ≤16Mpa | |
| Protective Material | Q235A Carbon Steel | |
| Controlling Way | Three-way hydraulic control valve | |
| Other Configuration |
| |
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
Containers of Sinotruck 22m3 arm roll waste hook lift container loader garbage truck are easy to load and unload safely. The contents can also be dumped out like a regular dump truck if desired. The mechanism for preventing the container from shaking during transportation comes standard. The arm slider mechanism keeps the container close to the ground during loading and unloading.
The container has two types: the normal one and garbage compactor container.
The garbga compactor container has compacting system which can get electric power supply from the truck or from external power.
Our factory can supply many different brands of
hook lift garbage trucks,such as Dongfeng brand,Howo brand,Isuzu brand,Foton brand,Howo brand,Shacman brand,etc.
The truck chassis type mainly use 4x2 type,6x4 type,8x4 type,also have 4x4 abd 6x6 all wheel drive type.
The 4x2 type can make 1-16 ton load capacity hook lift garbage trucks;
The 6x4 type can make 20-30ton hook lift/Roll on roll off garbage trucks;
We Welcome more and more clients overseas visit our factory and place purchase of our vehicles. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
