our industry advantage
vehicle photo show
product parameters
| loading capacity | 30000-35000 capacity | volume | 17cubic meters | chicks van dimension | 5000×1900×1800(can be customized) | truck chassis | ISUZU 100P/600P | wheelbase | 3800mm | engine | isuzu diesel engine, | Tires | 7.00R16 tires*6+1 spare | cooling system | yes, USA CARRIER/THERMO KING | heating system | it is optional | Ventilating | yes, | goods shelves | optional | MOQ | 1 UNIT | Color | customized |
|---|
Customized ISUZU brand 130hp diesel day old chick transported vehicle, adopts ISUZU 4*2 LHD single row driver cab, ISUZU MSB 5 speed manual gearbox, 2-2.5tons front axle/4.8tons rear axle, 7.00R16 rail tires, original air conditioner and power steering, etc.
The dimension(L*W*H) of ISUZU 130hp Euro 5 diesel day old chicks transported truck is 5000×1900×1800(mm), while the overall dimension(L*W*H) of ISUZU 600P day old chicks truck is 7000*2130*3000(mm). Client choose to install USA CARRIER/THERMO KING refrigerated reefer unit( the lowest temperature is up to -15 degree.)
Details of ISUZU 600P day old chicks transported truck is as below.

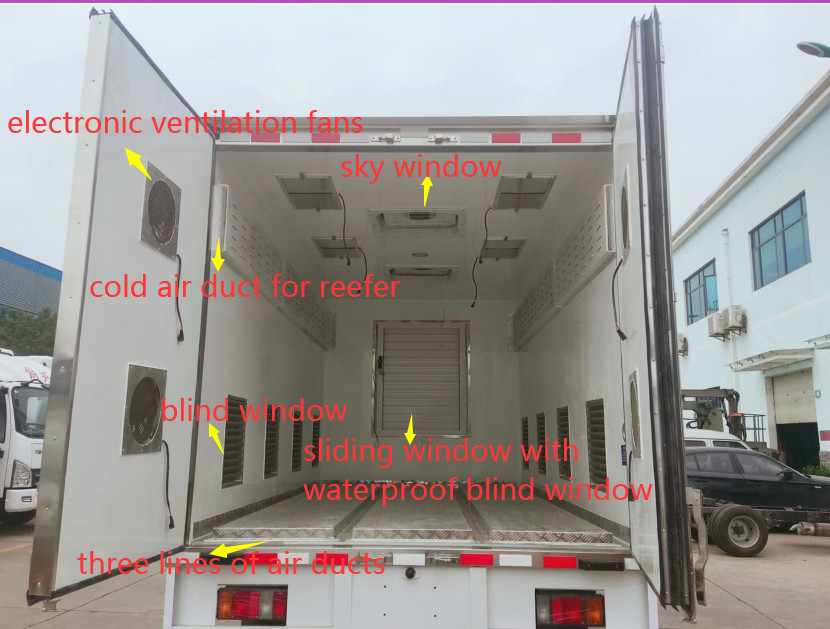

1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
3,4-5 sets of blind windows with sliding doors for the left and right van sides

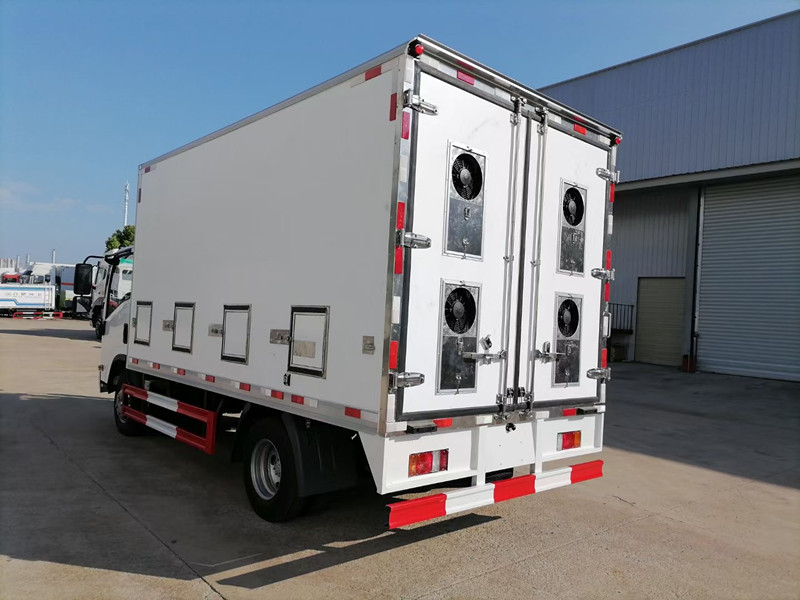

4, each 2 sets of electronic ventilator fans for the front and rear plate; each 4 sets of electronic ventilator fans for the van top
5, Top mounted sky window* 3 sets
6, two line of air duct installed on the floor air flow
7, China made high quality USA CARRIER/THERMO KING vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -15 degree, adjusted at the driver cab)
8, two line of cold air ducts on both van body.

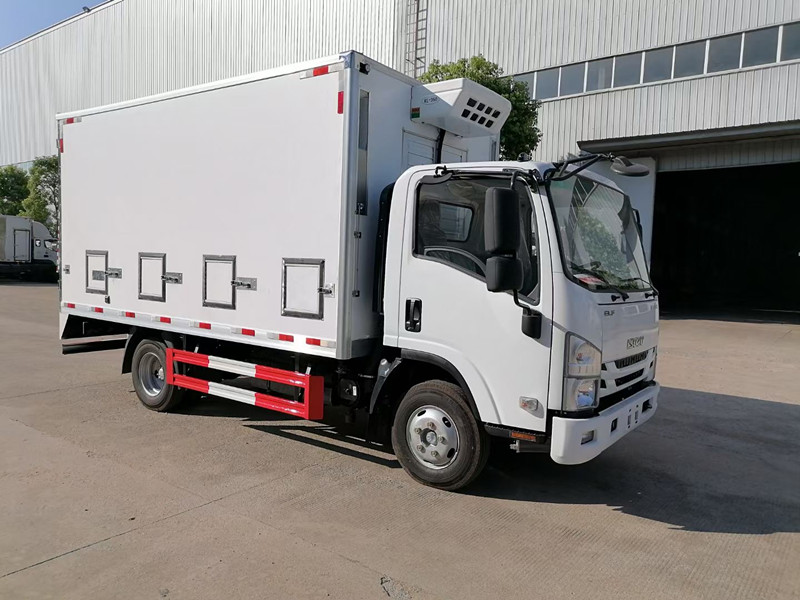

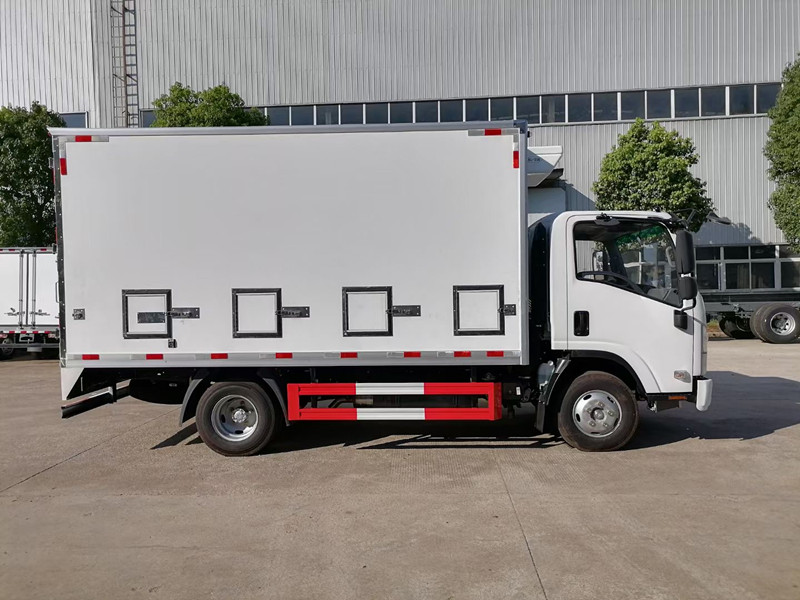

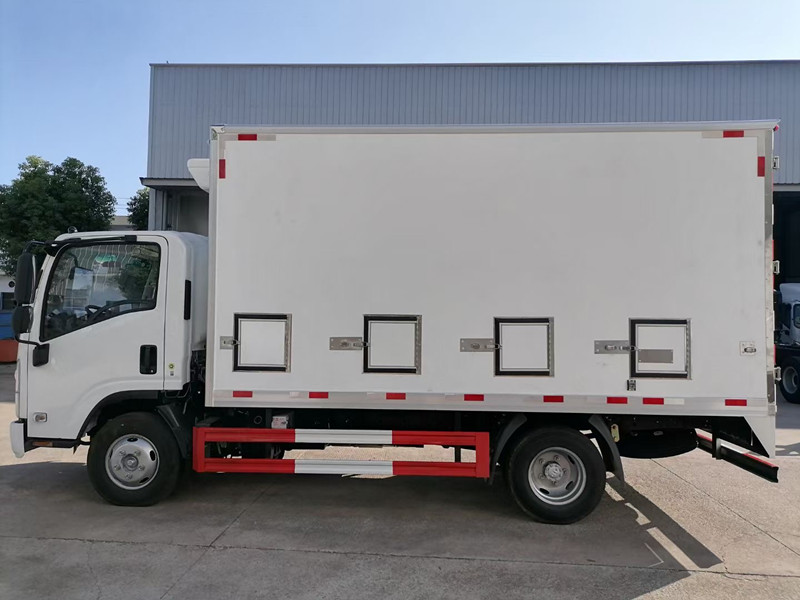

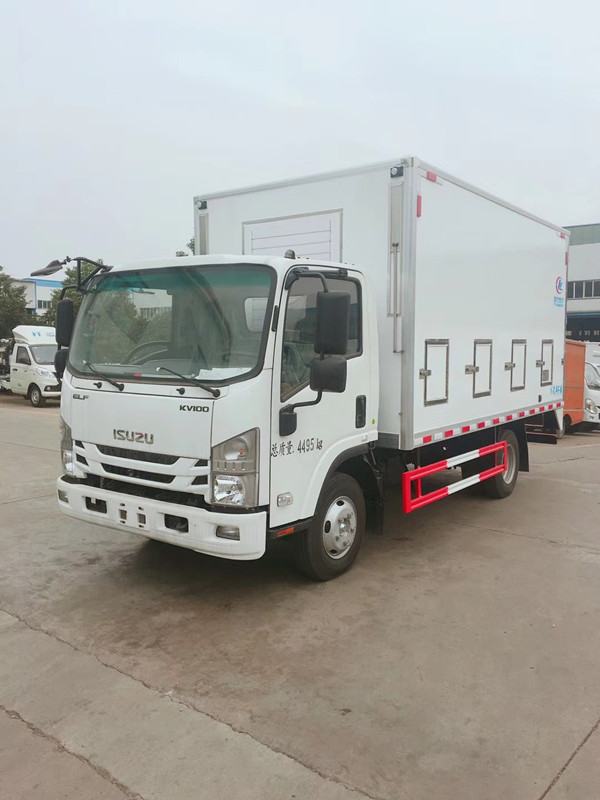

More pictures of ISUZU day old chicks transported truck are as below.
ISUZU day old chicks transported truck
Main technical parameters of ISUZU Brand day old chicks transported truck is as below.
| Overview | |
| Product name | Isuzu Brand 4*2 LHD day old chick transported truck(5tons) |
| Dimension(L*W*H)(mm) | 7000*2130*3000 |
| Total mass(kgs) | 6795 |
| Rated payload(kgs) | 3310 |
| Kerb weight(kgs) | 3470 |
| Driver cab seats | 3(driver included) |
| Approach/departure angle(°) | 19/13 |
| The parameters of chassis | |
| Truck chassis manufacturer | ISUZU |
| Driving type | 4*2 LHD(Left hand drive) |
| Wheelbase(mm) | 3815 |
| Gearbox | ISUZU MSB 5 speed manual gearbox |
| Front/rear track(mm) | 1685/1520 |
| Tyre specification | 7.50R16*6+1(spare) |
| Front/rear suspension(mm) | 1110/2015 |
| Leaf Spring number | 3/3+2 |
| Driver cab A/C | Equipped |
| The parameters of engine | |
| Engine manufactuer/model | ISUZU 4KH1CN5HS |
| Engine rated power | 130hp/96KW |
| Fuel type | Diesel/oil |
| Displacement/capacity(ml) | 2999 |
| Emission standard | Euro 5 |
| Cylinders | 4 cylinder in line |
| Max .torque | 290N.m |
| Velocity | 1500rpm |
| The parameters of van body | |
| Van box body dimension(L*W*H)(mm) | 5000*1800*1900 |
| Material | 2.2mm external fiberglass, internal 2mm stainless steel, sandwish 80mm XPS |
| Rubber sealing | Equipped |
| Van body skeleton rim | Aluminum |
| Doorframe and locks | Stainless steel material |
| Lighting | LED lights |
| Cooling system | CARRIER reefer unit(model: C-500) |
| Ventilations | Both van body sides total with 8 windows(4*2), ceiling 3 sky windows, ceiling ventilations fans 8 pcs(4*2), rear door ventilations 4pcs, upper sides ventilation vent, floor ventilation vents |
| Shelves | Two sides and tiltable |
Day old chciks transported truck is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc. It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost. The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
And we can design and installed shelves in the van body.
The poultry transported truck is mounted on the truck chassis, choosing high quality, high strength FRP materials with high-tech Sandwich crafts working.
The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
The poultry transported truck is mounted on the truck chassis, choosing high quality, high strength FRP materials with high-tech Sandwich crafts working. The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
The day old chick transported truck is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
