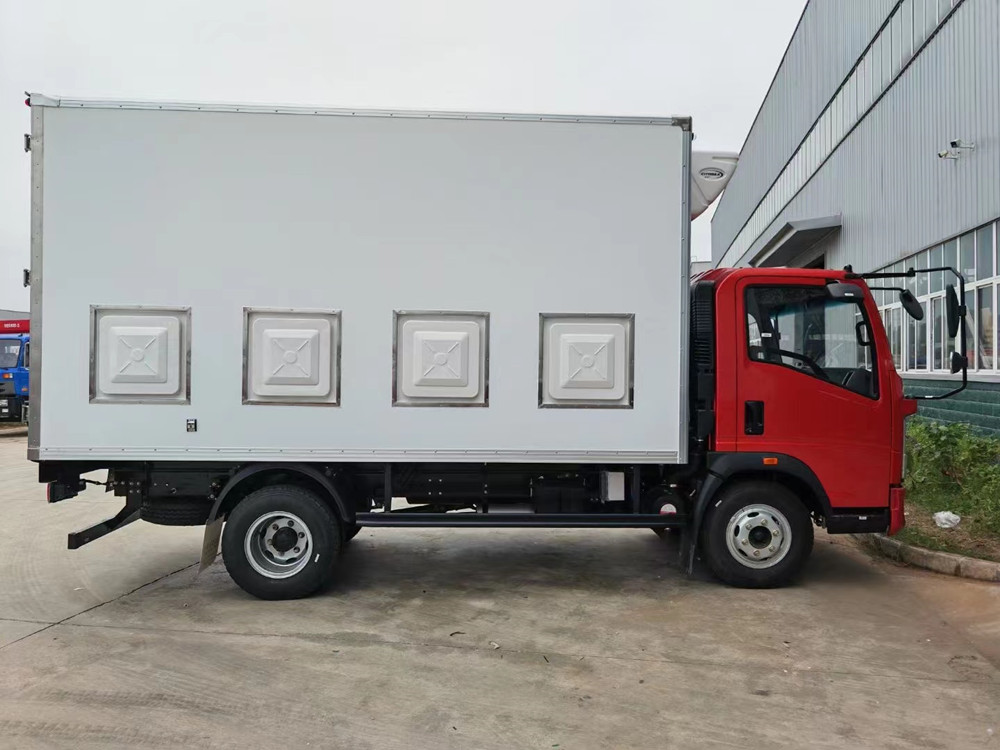

high quality customized 20000 baby birds transported van vehicle SINOTRUK HOWO RHD 6 tires for sale
Truck chassis device: SINO TRUK HOWO 1880mm one row and a half driver cab, 4*2 RHD.
3360mm wheelbase, 2T front axle/3.5T rear axle,
YN4102QBZL Yunnei 116hp/2771ml diesel engine, Euro 3 emission standard
WLY6T100 wanliyang 6 speed manual gearbox, 6 forward gear and 2 reverse gear
7.00R16 tires *6+1,
12Volts electrics, power steering, air cut braking, spring-loader brake, electric heating, clutch steering, etc.
Details of SINO TRUK HOWO 4*2 RHD diesel day old chicks transported truck is as below.
1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
3,4 sets of blind windows with sliding doors for the left and right van sides
4, each 2 sets of electronic ventilator fans for the front and rear plate; each 3 sets of electronic ventilator fans for the van top,
5, Top mounted sky window* 2 sets
6, two lines of air duct installed on the floor air flow
7, China made high quality USA CARRIER vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10 degree, adjusted at the driver cab)
8, two line of cold air ducts on both van body.
9, ladder at the the front van(the driver side)
| Product name | SINO TRUK HOWO 4*2 RHD day old chick transported truck | ||
| Overall dimension(L*W*H)(mm) | 5995×2220×3100 | Chick van box dimension(L*W*H)mm | 4100×2040×1800(mm). |
| Drive type | 4*2 RHD, LHD is selective | Total mass | 4495 |
| Gearbox | 6 speed transmission, manual | Tyre specification | 7.00R16 rail tyres *6+1 |
| Power steering | Yes | Exhaust braking | Yes |
| Air-cut braking | Yes | Driver cab | SINO TRUK HOWO 1880mm single row driver cab without air conditioner |
| Engine | YN4102QBZL | Emission standard | Euro 3 |
| Rater power | 75KW/120hp | Displacement (ml) | 3760 |
Main technical parameters of day old chick van body
| Performance and consumption | |||
| Heating system | Watering system | Without, client choose to install | |
| Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
| Ventilation system | Air duct installed on the floor for air flow | Two line as the pictures show | |
| Cold air duct installed on the double sides of the van body | Two lines as the pictures show | ||
| Blind windows | 4 sets of blind windows with smaller doors for the left and right van sides (as the pictures show), 2 sets of blind windows for the front plate. Blind Windows: 4*2+2=8 | ||
| electronic ventilator fans | 1, 2 sets of electronic ventilator fans with sliding doors for the rear plate door; 3 sets of electronic ventilator fans for the van top Electronic fans: 2+3*2=8 | ||
| Sky-window | Top mounted sky windows*2 Sky-windows: 2*1=2 | ||
| Dimension | |||
| Chick van box body | Length | 4100mm | |
| Width | 2040mm | ||
| Height | 1800m | ||
| Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate; | ||
Day old chicks transported vehicle is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
