our industry advantage
vehicle photo show
product parameters
| loading capacity | 50,000 day old chicks capacity | volume | 39-40cubic meters | van dimension | 6800*2340*2470 (mm). | truck head | dongfeng | driving type | 4*2 LHD, RHD optional | cooling system | yes | heating system | optional | ventilation system | yes | goods shelves | customized | MOQ | 1 unit | color | different color upon request |
|---|

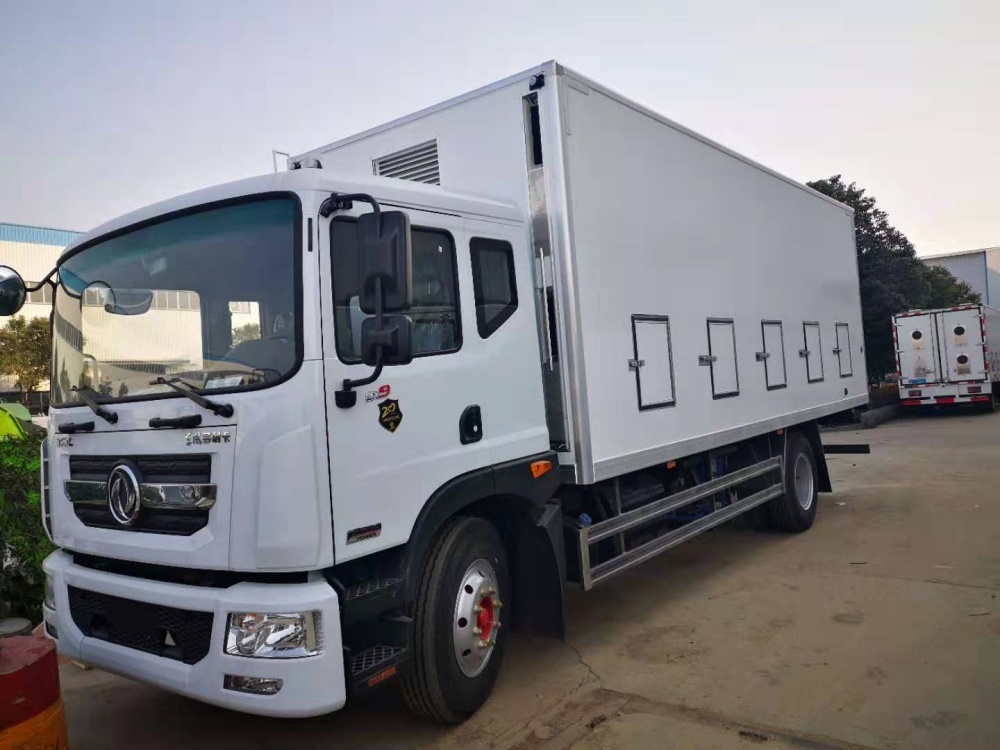

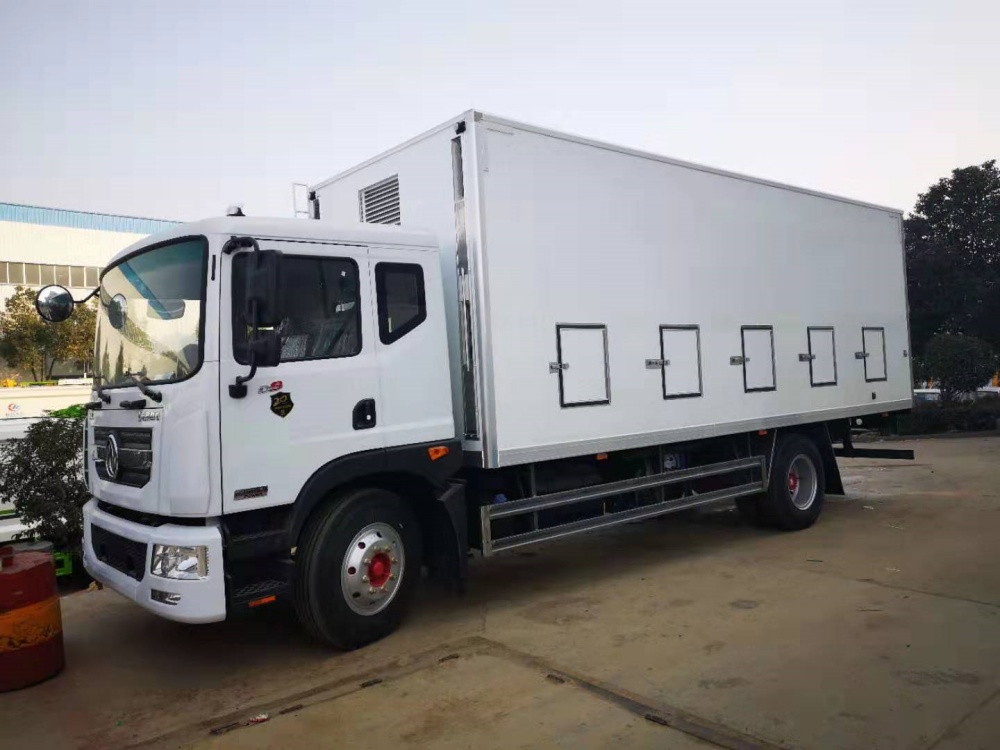

dongfeng D9 6.8m length day old chicks transported truck for sale
| Product name | Dongfeng D9 4*2 LHD day old chick transported truck | ||
| Overall dimension(L*W*H)(mm) | 9080×2500×3850 | Chick van box dimension(L*W*H)mm | 6800*2340*2470 (mm). |
| Drive type | 4*2 LHD | Total mass | 16000 |
| Gearbox | Fastgear 8 speed transmission, manual | Tyre specification | 10.00R20 rail tyres *6+1 |
| Power steering | Yes | Exhaust braking | Yes |
| Air cut braking | Yes | Driver cab | Dongfeng D9 one row and a half driver cab |
| Engine | ISB180 50 | Emission standard | Euro Ⅴ |
| Rater power | 132KW/180hp | Displacement (ml) | 5990 |
Main technical parameters of day old chick van body
| Performance and consumption | |||
| Heating system | Watering system | Without, client choose to install | |

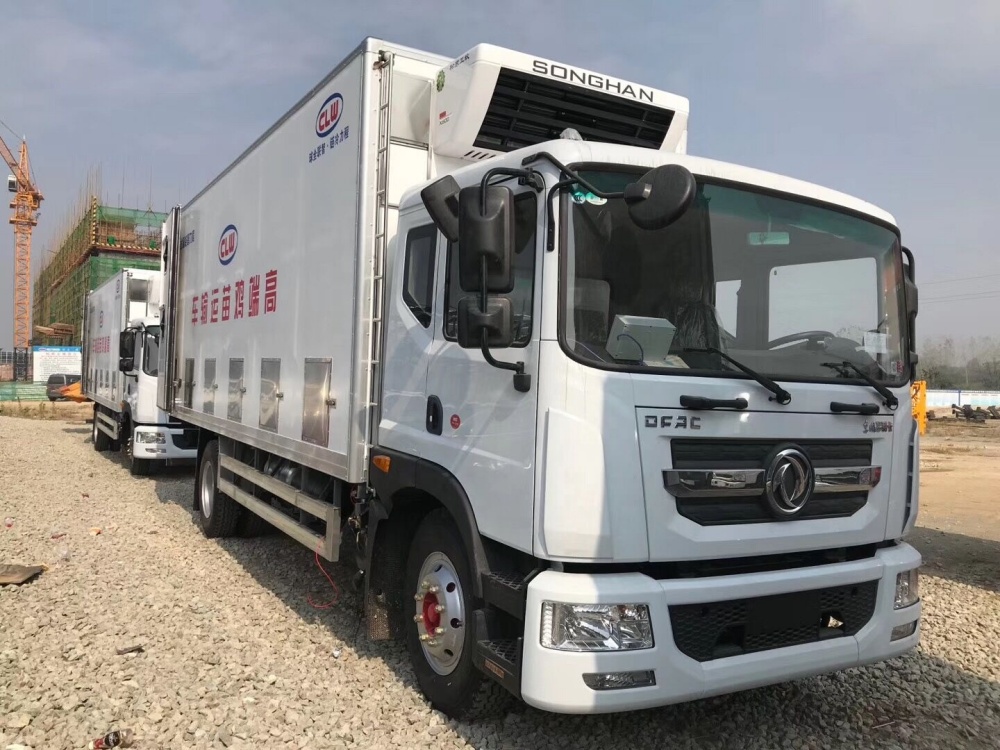

| Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
| Ventilation system | Air duct installed on the floor for air flow | three line as the pictures show | |
| Cold air ducts on the two sides of the van body | three cold air ducts for the refrigerated reefer | ||
| Blind windows | 5 sets of blind windows for the left and right van sides (as the pictures show); one bigger water-proof blind window at the front van plate. Blind Windows: 5*2+1=11 | ||

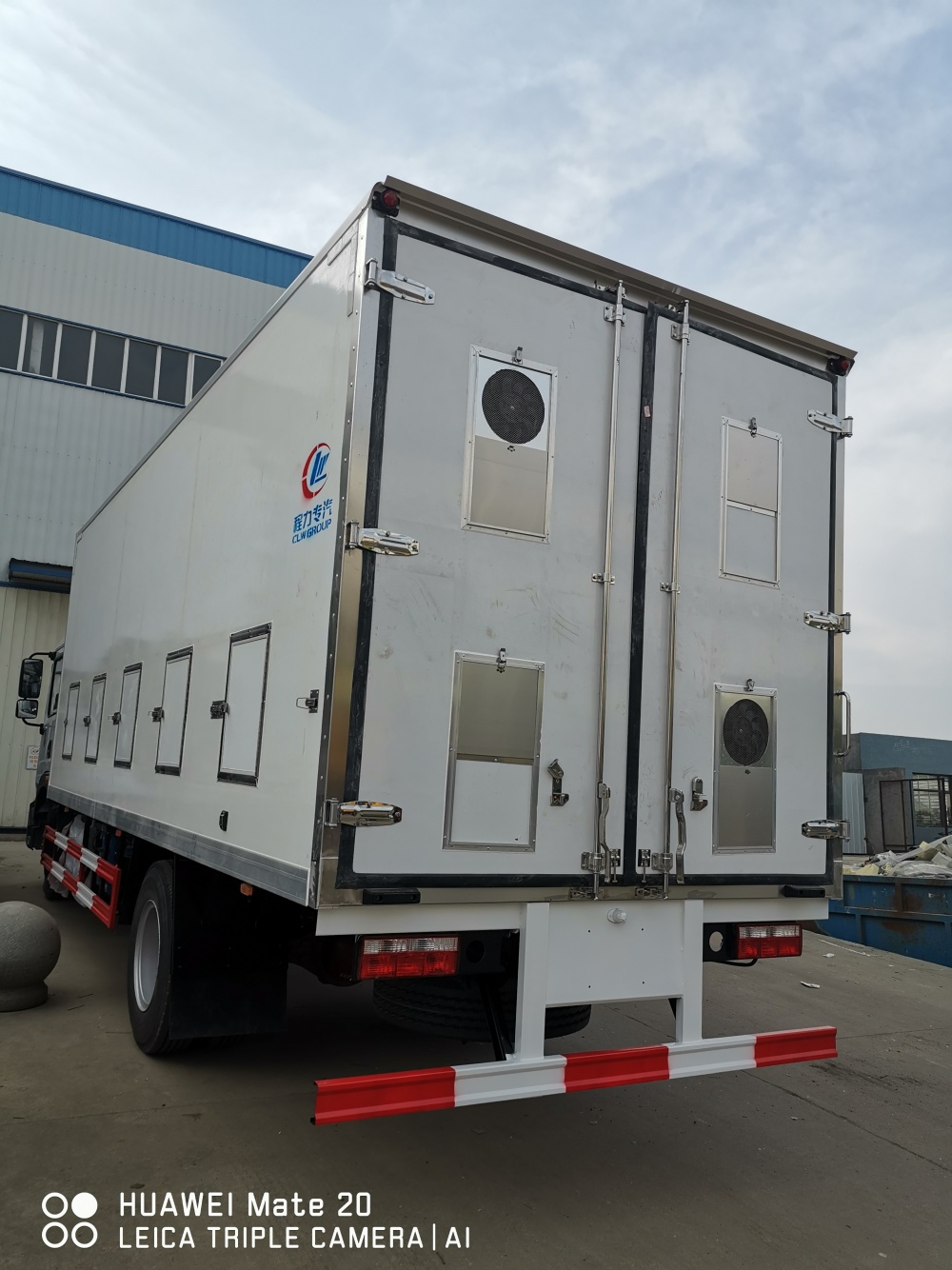

| electronic ventilator fans | 1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 4 sets of electronic ventilator fans for the van top Electronic fans: 4+4=8 | ||
| Sky-window | Top mounted sky windows*2 Sky-windows: 2*1=2 | ||
| Sliding window | One sliding window at the front van plate（as the picture show） | ||
| Dimension | |||
| Chick van box body | Length | 6800mm | |
| Width | 2340mm | ||
| Height | 2470mm | ||
| Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate; | ||
<!--
--><!--
-->
Day old chick truck is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
And we can design and installed shelves in the van body.
The poultry transported truck is mounted on the truck chassis, choosing high quality, high strength FRP materials with high-tech Sandwich crafts working.
The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of van truck in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply refrigerated truck, insualtion body van box, cargo van truck, baby chick transported truck, etc. And our CLW brand van truck have been exported to many countries all over the world. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
