our industry advantage
vehicle photo show
product parameters
Day old chciks transported truck is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc. It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost. The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
Today, we will introduce 32cubic meters poultry babychicks van vehicle for 40,000-45,000 capacity is as below.
main technical parameters of 32CBM day old chicks transported truck as below.
| Product name | day old chick transported truck | ||
| Overall dimension(L*W*H)(mm) | 9000*2490*3850 | Chick van box dimension(L*W*H)mm | 6100*2280*2300 (mm). |
| Drive type | 4*2 LHD, RHD is selective | Total mass | 16000kgs |
| Gearbox | 8 speed gear box | Tyre specification | 10.00R20 rail tires*6+1 |
| Power steering | Yes | Exhaust braking | Yes |
| Air-cut braking | Yes | Driver cab | Dongfeng TIANJIN 4*2 luxurious one and a half driver cab with original air conditioner |
| Engine | Cummins 190hp | Emission standard | Euro 3 |
| Wheelbase(mm) | 4700 | F/R axle loading | 5tons/10tons |
Main parameters for the chick van box as below.
| Performance and consumption | |||
| Heating system | Watering system | No | |
| Cooling system | One refrigerated reefer | China made or USA CARRIER high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
| Cold air ducts on the two sides of the van body | Two cold air ducts for the refrigerated reefer | ||
| Blind windows | 6 sets of blind windows with openable doors for the left and right van sides as two lines of each van side (as the pictures show), 3 sets of blind windows for the front plate. Blind Windows: 6*2*2+3=27 | ||
| electronic ventilator fans | 1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 5*2 sets of electronic ventilator fans for the van top Electronic fans: 4+5*2=14 | ||
| Sky-window | Top mounted sky windows*4 Sky-windows: 4 | ||
| Dimension | |||
| Chick van box body | Length | 6400mm | |
| Width | 2280mm | ||
| Height | 2300m | ||
| Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate; | ||
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.

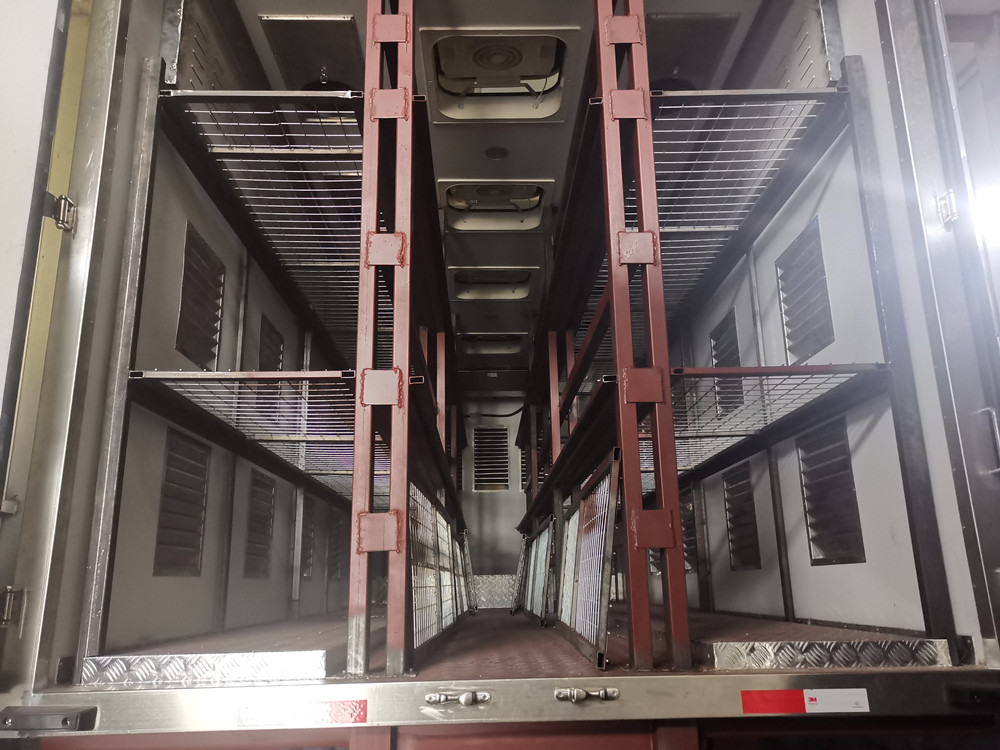

customized good shevels for day old chicks transported truck
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of van truck in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply refrigerated truck, insualtion body van box, cargo van truck, baby chick transported truck, etc. And our CLW brand van truck have been exported to many countries all over the world. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
