Hot sale! JMC LHD poultry day old chicks transported vehicle
JMC one row and a half driver cab
3360mm wheelbase
JX493ZQ4A 92hp ISUZU technical diesel engine, Euro 2 emission standard
JMC 5+1 gears, manual type
7.00R16 Tires*6+1 spare
Power steering, air conditioner, remote keys, radios+MP3, manual windows, etc.
Details of JMC 4*2 LHD diesel day old chicks transported truck is as below.
1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
3,3 sets of blind windows with sliding doors for the left and right van sides
4, each 2 sets of electronic ventilator fans for the front and rear plate; each 3 sets of electronic ventilator fans for the van top,
5, Top mounted sky window* 2 sets
6, two lines of air duct installed on the floor air flow
7, China made high quality USA CARRIER vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10 degree, adjusted at the driver cab)
8, two line of cold air ducts on both van body.
9, ladder at the the front van(the driver side).

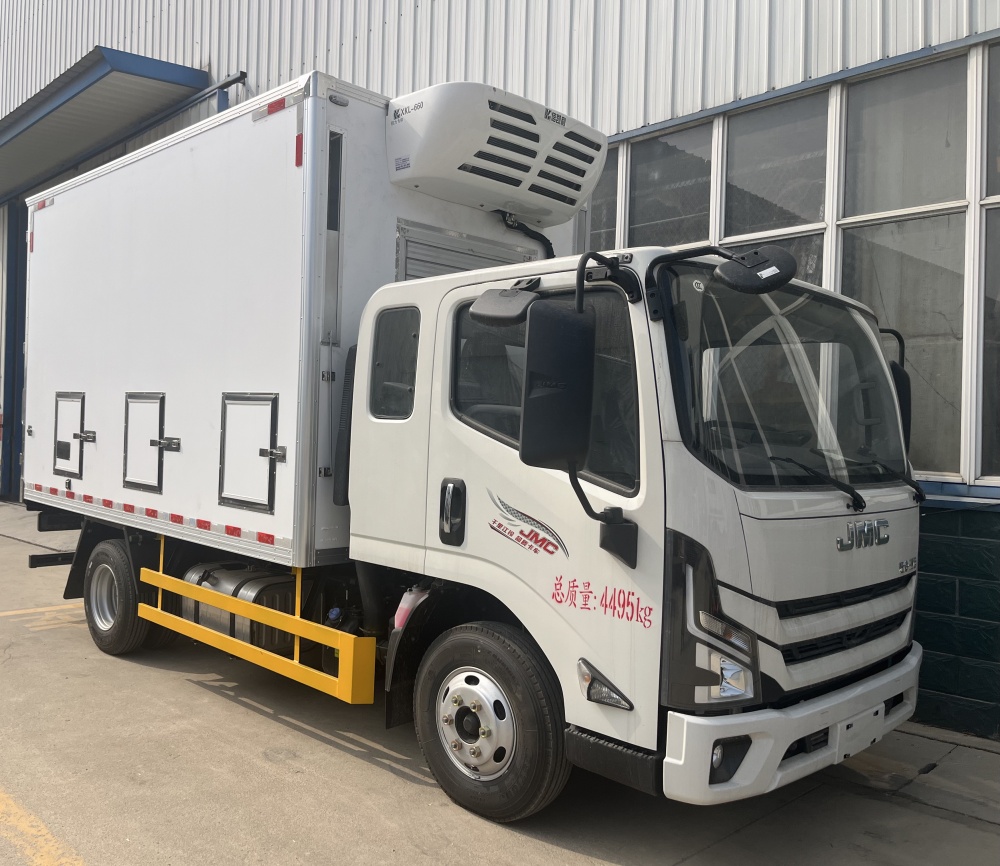

More pictures of JMC diesel 4*2 LHD babychicks van vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
high quality and best price JMC day old broilers van vehicle for sale
the specification of JMC 4*2 LHD diesel 4.15m length day old chick transported truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Product name | JMC 4*2 LHD day old chick transported truck | ||
Overall dimension(L*W*H)(mm) | 5995×1950×2900 | Chick van box dimension(L*W*H)mm | 4150×1750×1750 (mm). |
Drive type | 4*2 LHD | Total mass | 4495 |
Gearbox | JMC 5speed transmission, manual | Tyre specification | 7.00R16 rail tyres *6+1 |
Power steering | Yes | Exhaust braking | Yes |
oil-cut braking | Yes | Driver cab | JMC one row and a half driver cab |
Engine | JX493ZQ4A | Emission standard | Euro 2 |
Rater power | 92hp | Displacement (ml) | 2771 |
Main technical parameters of day old chick van body
Performance and consumption | |||
Heating system | Watering system | Without, client choose to install | |
Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
Ventilation system | Air duct installed on the floor for air flow | three line as the pictures show | |
Cold air duct installed on the double sides of the van body | Two lines as the pictures show | ||
Blind windows | 3 sets of blind windows with smaller doors for the left and right van sides (as the pictures show), Blind Windows: 3*2=6 | ||
electronic ventilator fans | 1, 4 sets of electronic ventilator fans for the rear plate door; 2 sets of electronic ventilator fans for front plate Electronic fans: 4+2=6 | ||
Sky-window | Top mounted sky windows is selective | ||
Dimension | |||
Chick van box body | Length | 4150mm | |
Width | 1750mm | ||
Height | 1750m | ||
Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; |
Day old chciks transported truck is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc. It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost. The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
The transport of day old chicks from hatchery to farm has a critical role to play in subsequent performance. Hatcheries operate in a fully controlled indoor environment, while transport entails the risk of exposing the chicks to uncontrolled, outdoor conditions.
If the chicks are not protected from unpredictable changes to their climate, varying road conditions, traffic jams and other delays, their performance is directly impaired.The modern hatchery is a major investment in state-of-the-art science, technology and engineering. It therefore makes sense to create a professional, modern chick transport fleet, specifically designed to maintain an optimised environment, to ensure that the birds arrive at the farm in the same condition in which they left the hatchery.
Day old chicks are naturally well equipped for transport. Born with a residual yolk, they are comfortable without feed and water for up to two days – providing that temperature inside the chick boxes is kept within their thermoneutral zone. Within this narrow temperature range of 32 – 35 °C, the chick’s metabolism is just at maintenance level with minimal heat production and water loss.
If the temperature inside the chick boxes rises above this range, the chicks will start to use energy from the yolk sac at a much faster rate,to facilitate panting behaviour in an attempt to maintain an optimal body temperature of 39,5 – 40 °C. Proteins used for this purpose are then no longer available for the development of the immune and digestive systems. Panting produces increased water loss, with the risk of dehydration.
When the temperature at chick level is below the thermoneutral zone, the day old chicks are forced to use their own resources for thermoregulation, rather than for growth and health. In general terms, temperature stress causes discomfort while also suppressing productive efficiency.
Transport conditions are still too often neglected, when in fact they have the potential to significantly affect growth rate, feed conversion, meat yield and the development of the immune system. Optimizing these conditions is highly beneficial for subsequent performance on the farm.
