our industry advantage

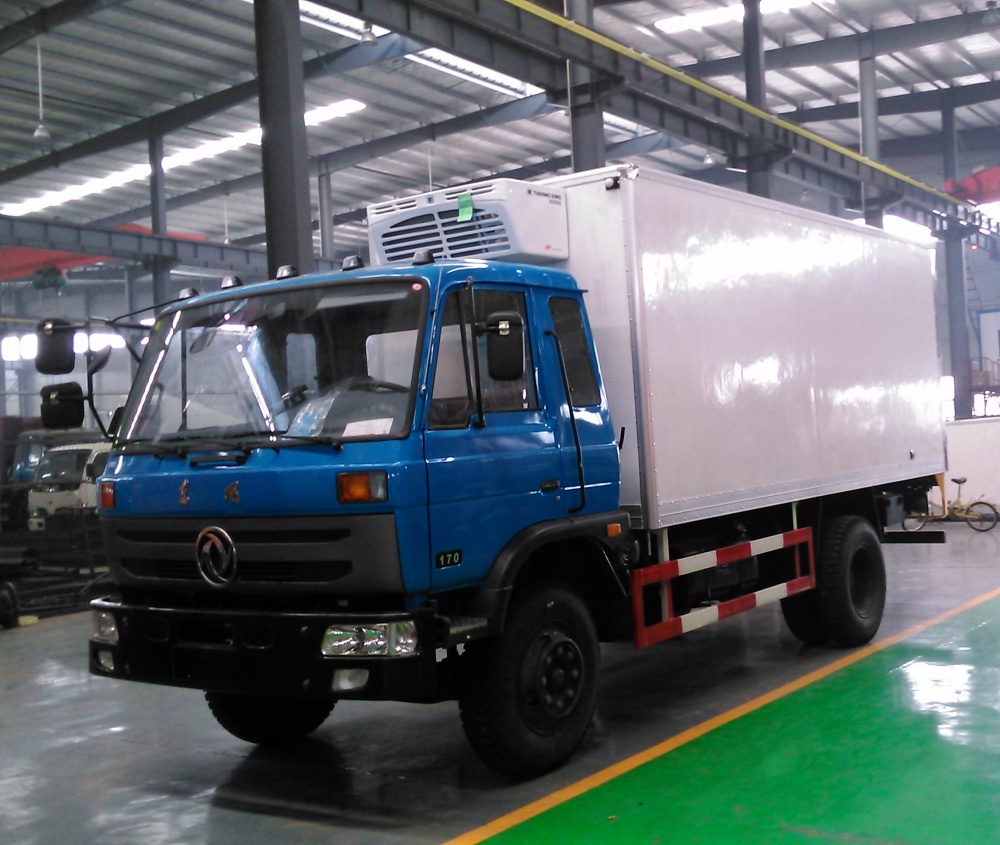

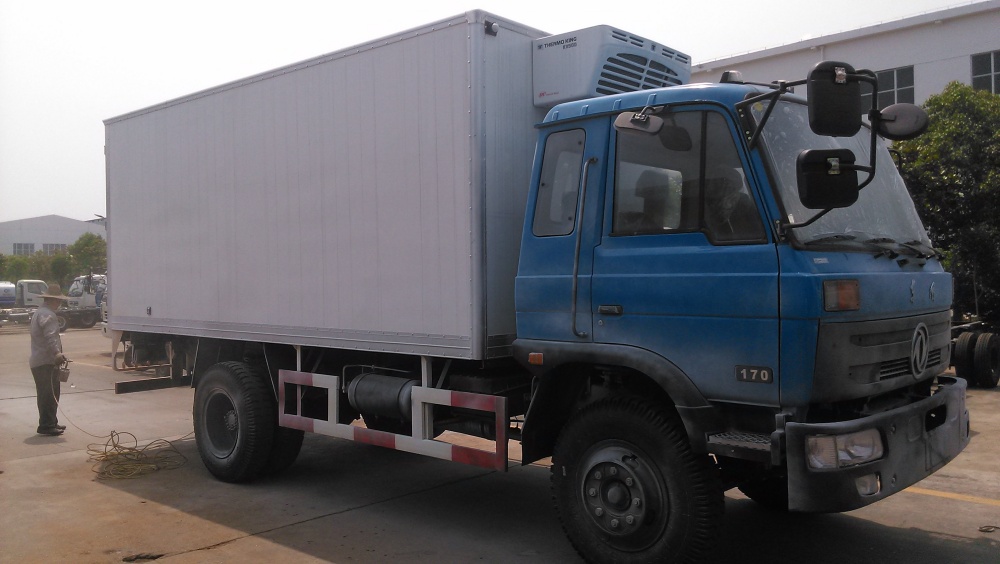

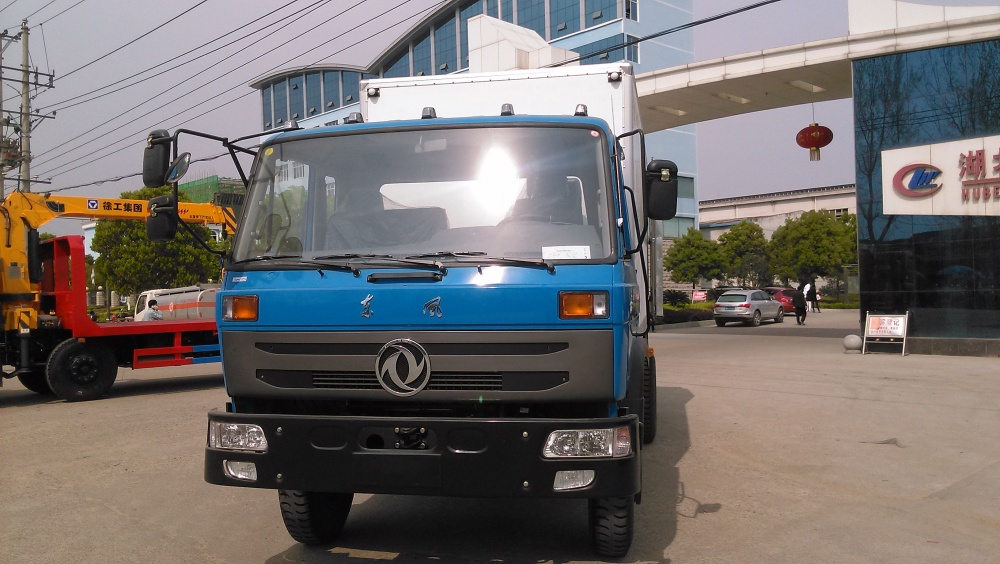

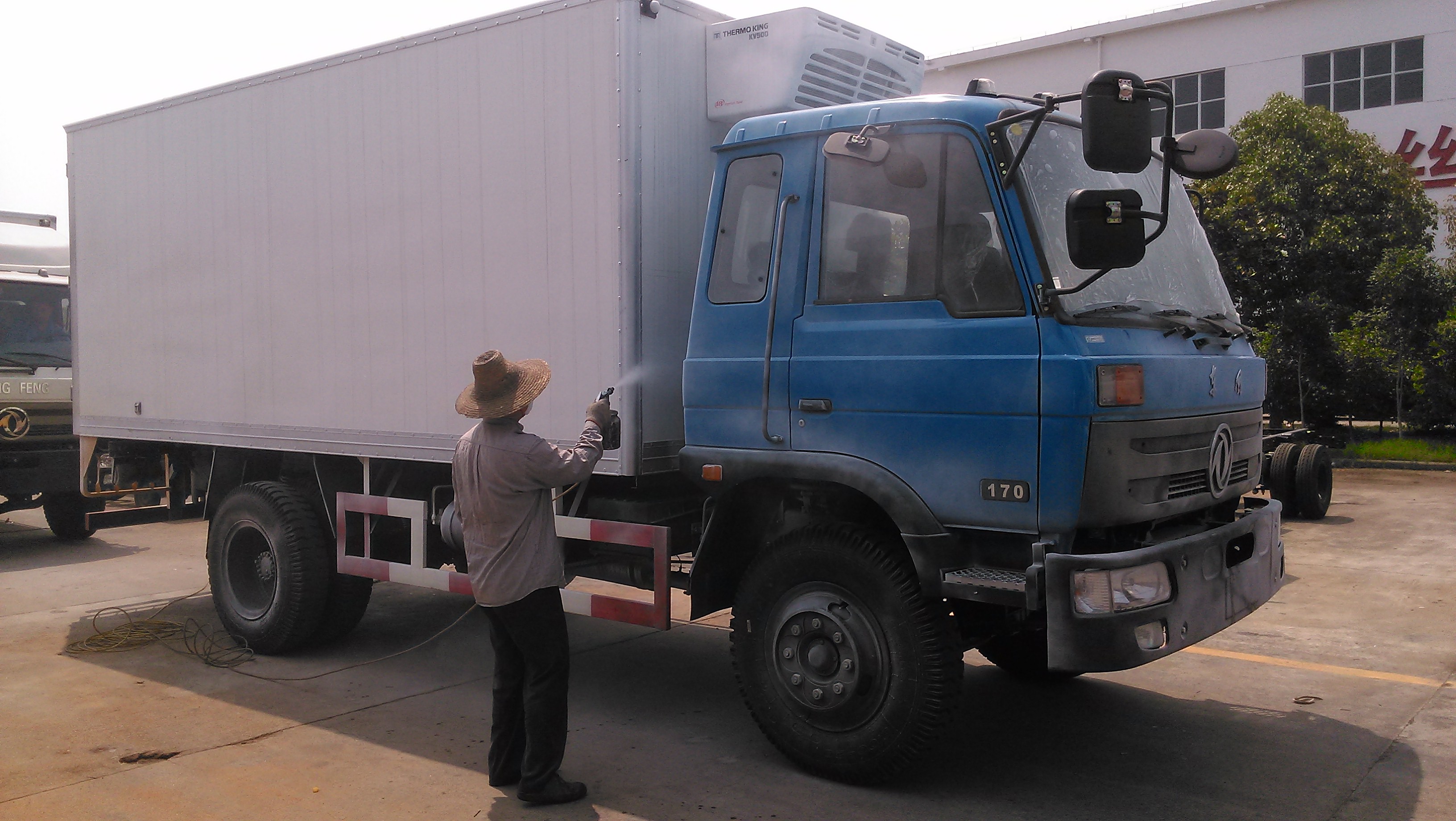

vehicle photo show
product parameters
| loading capacity | 7000kgs-10000kgs | van volume | 20cubic meters | van dimension | 5100*2000*2000（mm） | truck head | dongfeng | wheelbase | 3950mm | driving type | 4*2 LHD, 4*4 LHD RHD optional | engine model | B170 33 CUMMINS 170hp diesel engine | refrigerated reefer unit | China-made or USA CARRIER/ THERMO KING | MOQ | 1 unit | color | different color upon request, |
|---|
Dongfeng 145 Refrigerated truck, Chassis model: EQ1110GLJ, adopting Dongfeng 145 Original chassis, Euro Ⅲ Emission standard, Cummins 170hp engine, Dongfeng 6 speed transmission, 3.6ton front bridge, 9ton rear bridge, 900-20 nylon tyre, with air-conditioner, the wheelbase: 3950mm,
The insulation body of dongfeng 145 refrigerated truck dimension(L*W*H ) is 5100*2000*2000（mm）, the cargo volume: 20cbm. And the cargo material use inner and outer glass steel,
Cooling units adopts USA THERMO KING dependent cooling unit and the cooling temperature can reach 20 degree below zero, controlled at the driver cab.
| Dongfeng 145 refrigerated truck | |||
| Total mass(kg) | 11495 | Curb mass(kg) | 6300 |
| Rated mass(kg) | 5000 | Chassis model | EQ1110GLJ |
| Driver cab person | 3 | Max speed(km/h) | 90 |
| Approach/departure angle(°) | 33/19 | Front/rear suspension(mm) | 1250/2200 |
| Overall dimension(mm) | 7400X2470X2850 | Cargo body dimension(mm) | XX |
| Axles | 2 | Axle load(kg) | 4295/7200 |
| Tyre | 9.00-20,9.00R20 | Tyre nos. | 6 |
| Front tread(mm) | 1900,1810 | Rear tread(mm) | 1800 |
| Wheelbase(mm) | 3950 | Springs | 8/11+8 |
| Emission standard | GB3847-2005,GB17691-2005 Euro Ⅲ | Fuel type | Diesel |
| Engine model | Manufacturer | Displacement | Power |
| B170 30 B170 33 | Dongfeng Cummins | 5900 5900 | 125 125 |
The refrigerated truck is made up of special truck chassis, heat-insulating van box(usually made up of PU material, fiberglass, color plate, stainless steel, etc.), refrigerating unit, temperature recorder inside the van, etc. As for the special requirements refrigerated trucks, such as meet hook refrigerated truck, could choose to fit meat hook, aluminum alloy guide rail, ventilating slot, etc.
The manufacturing technology of the refrigerated van by and sandwich crafts, which is most used in the bigger refrigerated truck manufacturer. Using this sandwich crafts, the refrigerated trucks having perfect heat-insulating.
<!--
--><!--
-->
All the refrigerated freezer insulated van trucks from Chengli Special Automobile Co., Ltd., adopt both exterior and interior with glass steel sheets, stainless steel, alunimum alloy etc.upon request, and the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There arealuminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
