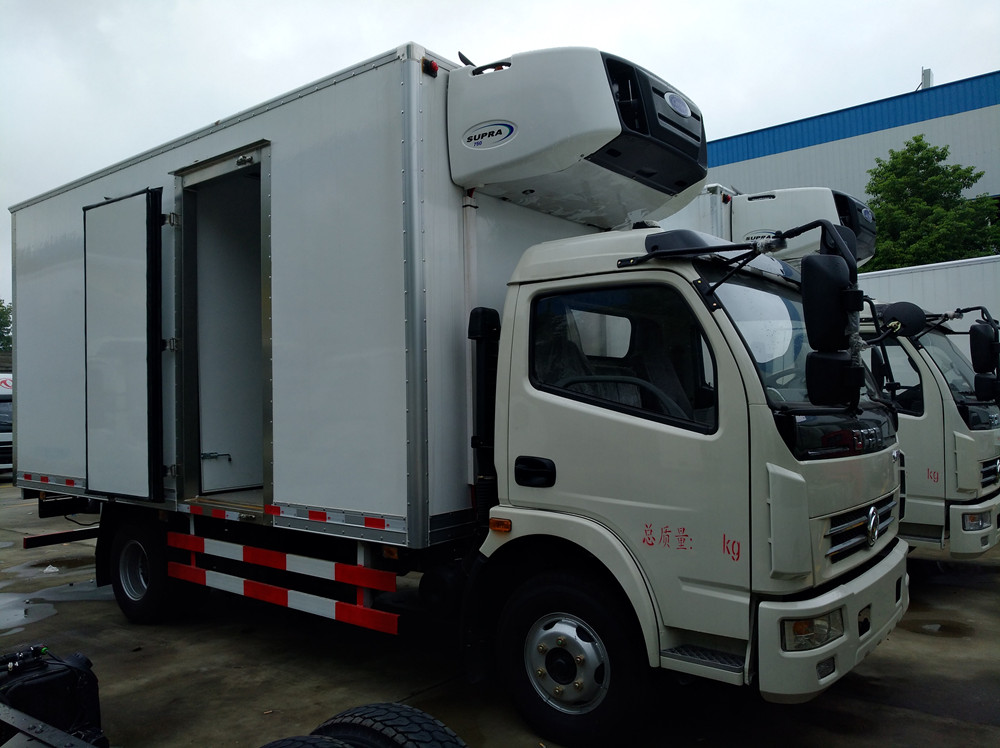

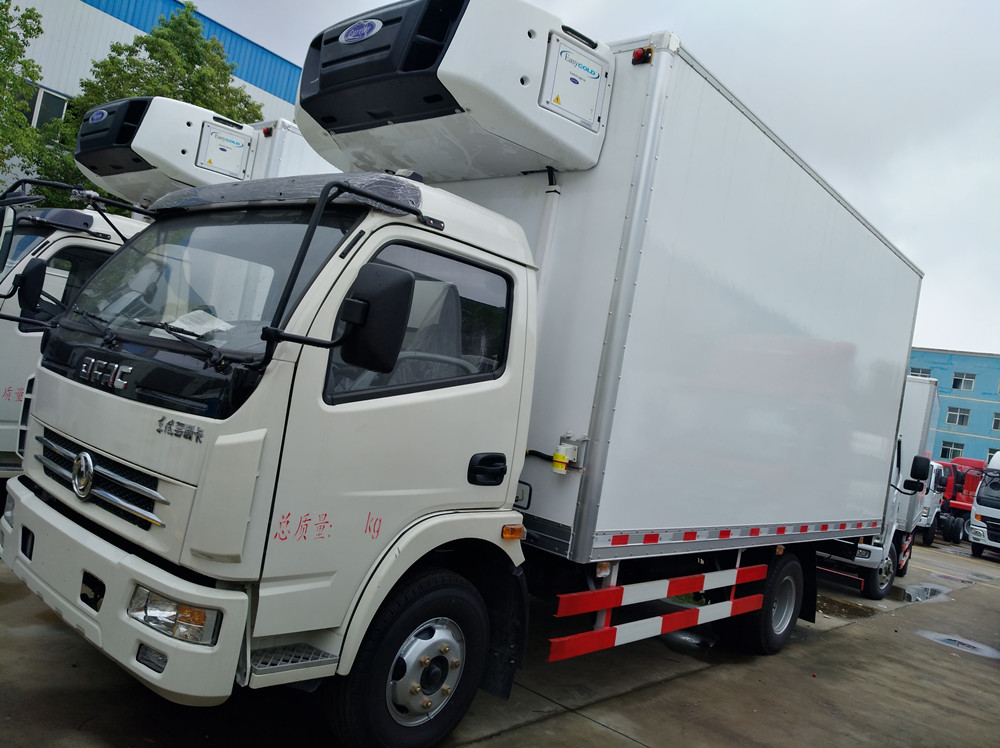

vehicle photo show
product parameters
high quality and best price refrigerated truck dongfeng brand new with two compartments for sale
Customized Dongfeng refrigerated truck with two compartments( Preservation area and frozen area) for different goods transportation
Dongfeng 2030mm single row driver cab
4*2 LHD, RHD optional
chaochai 120hp or yuchai 130hp diesel engine,
6+1 gears, manual type
7.50R16 tires*6+1 spare Dongfeng duolika refrigerated truck, the insulation body dimension (L*W*H) is 5120×2050×2100, the interior and exterior can be chosen the popular glass steelmaterial, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
If installed the meat hangers, the whole refrigerated van should be fastened. And the meat hangers are with double sides to hold one pig.

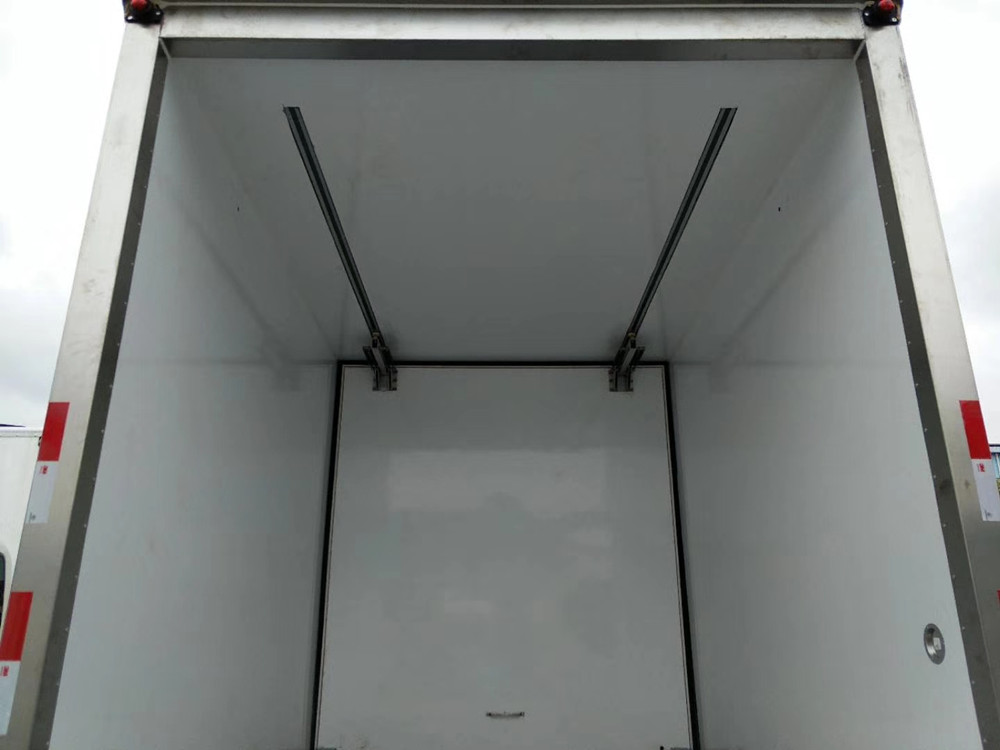

movable plate inside the van body for two compartments
The cooling unit adopts high quality Chinamade cooling unit. And the temperature can be adjusted in the driver cab, and the van temperature can reach 18 degree below zero.
There is a movalble plate inside the van body, which make the van body with two compartments(Preservation area and frozen area) for different goods transportation. One truck with different transportation ways.
Items | Descriptions | Specifications and Types |
General | Truck Name | Dongfeng 6ton refrigerated truck |
Drive Type | 4*2 | |
Payload (kg) | 5000 | |
Seating person | 2-3 | |
Curb Weight (kg) | 4395 | |
Overall Dimensions (L*W*H) (mm) | 6995×2285×3250 | |
Insulation van dimension(L*W*H)(mm) | 5120×2050×2100 | |
Driver cab | Dongfeng captain single row driver cab | |
Engine | Engine Model | YC4FA120-33 |
Engine Brand | Yuchai | |
Fuel Type | Diesel | |
Max output (hp/rpm) | 120hp/88KW | |
Emission Standard | Euro Ⅲ | |
Capacity (cc) | 3856 | |
Engine type | 4 cylinders, inter-cooling diesel engine | |
Chassis | Chassis Brand | Dongfeng |
Tire Specification | 8.25R16 tires | |
Wheelbase (mm) | 3800 | |
Axle No. | 2 | |
Front/Rear axle | 2.7ton front axle/6.8ton rear axle | |
Steering Wheel | Right hand drive | |
Gear Box | 6 speed gearbox, manual | |
Brake | Air brake | |
Air-conditioner | No, can be installed | |
Cold Room | Box inner dimension(mm) | 5120×2050×2100 (mm) |
Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. | |
Cooking unit | Huatai brand F300 Preservation cooling unit | Huatai brand F300 Preservation cooling unit, the temperature can be adjusted from zero degree to 8 degree below zero, etc. And the cooling unit can be adjusted at the driver cab. |
Remark | The refrigerated truck can choose to install meat hangers, vent-slots, etc. and side doors one movable plate inside the van body makes the van body with two compartments. |
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
