General

Truck Name

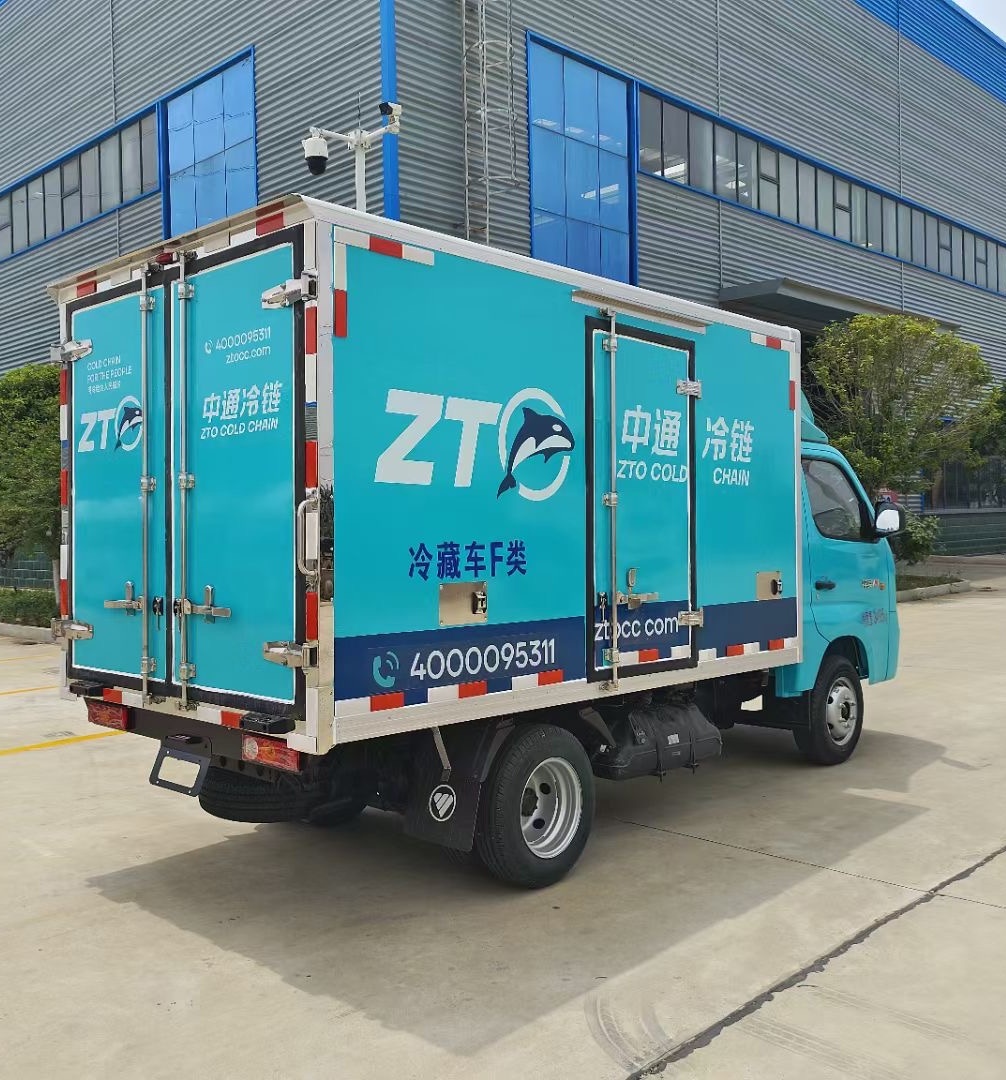

FOTON XIANGLIN M1 4*2 LHD gasoline refrigerated truck

Drive Type

4*2 LHD,

Payload (kg)

1.5T

Seating person

2

GVW (kg)

1615

Curb Weight (kg)

1750

Overall Dimensions (L*W*H) (mm)

5070×1720×2455,2490

Insulation van dimension(L*W*H)(mm)

3120×1560×1530,1560

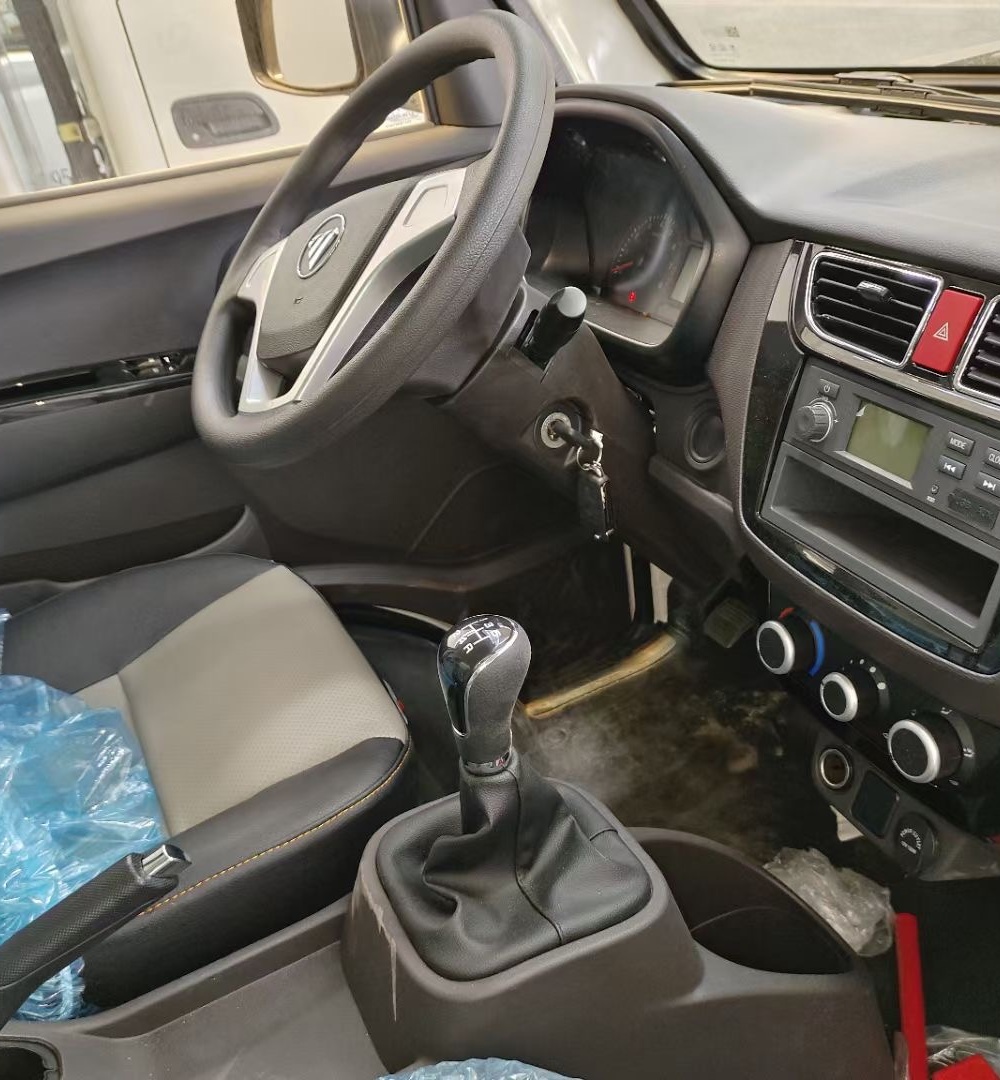

Driver cab

FOTON XIANGLIN 1520mm truck body

Engine

Engine Model

DAM15KL

Engine Brand

Dong’an

Fuel Type

Diesel

Max output (hp/rpm)

85KW/116hp

Emission Standard

Euro Ⅵ

Capacity (cc)

1498

Chassis

Chassis Brand

FOTON

Tire Specification

175R14LT 8PR*6

Wheelbase (mm)

2750

Axle No.

2

Steering Wheel

Left hand drive,

Gear Box

5 speed gearbox, manual

Brake

Air brake

Air-conditioner

No, can be installed

Cold Room

Box inner dimension(mm)

3120*1580/1620*1560

Box Side

Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure
one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like
sandwich structure.

Box Floor

Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of
the baseboard.

Doors

Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories use stainless steel materials.

Refrigeration unit

Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5℃ to 15℃. And the reefer can be adjusted at the driver cab.
