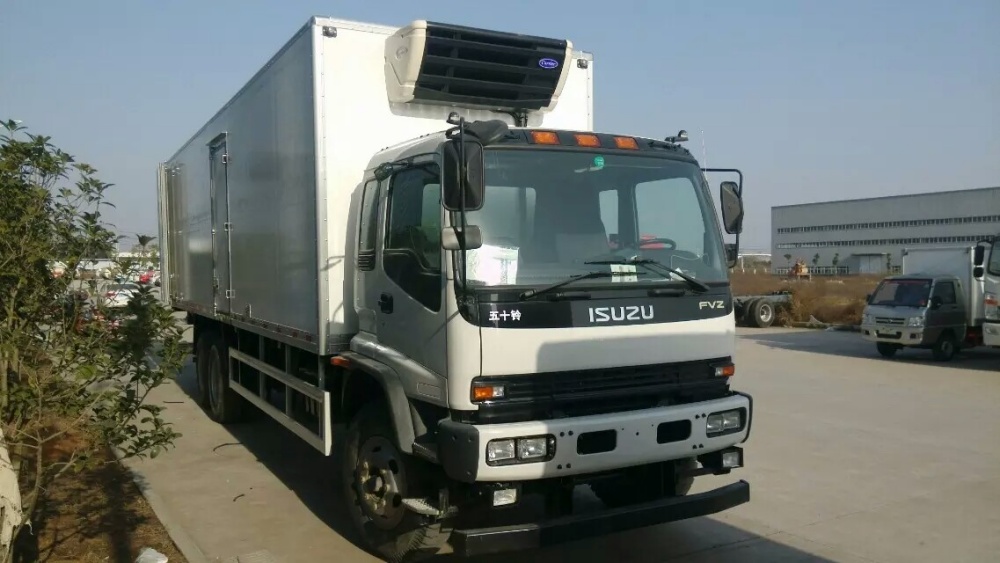

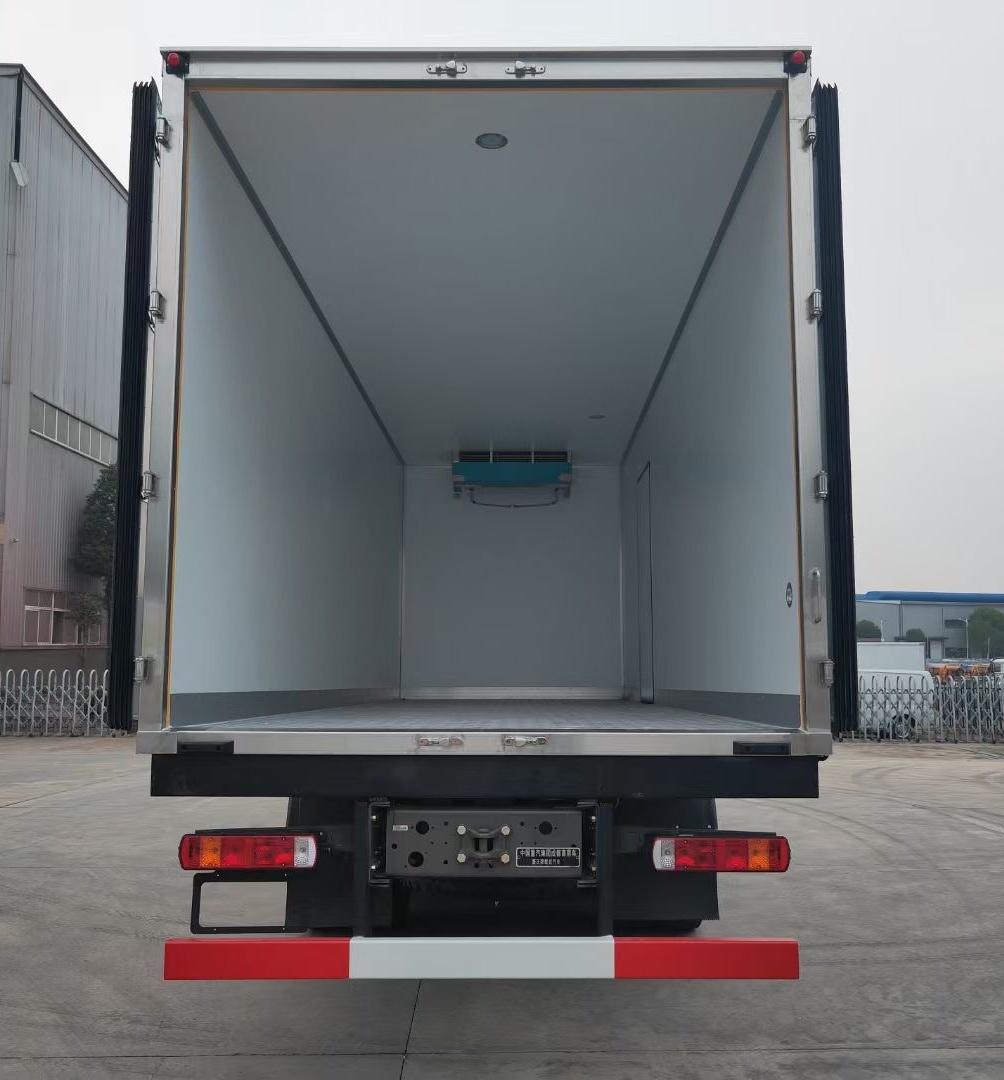

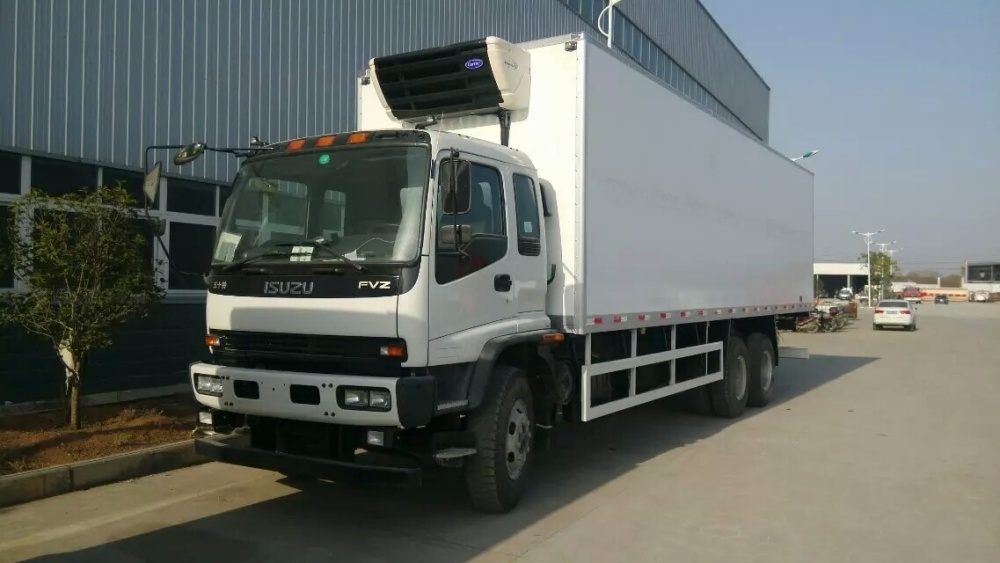

vehicle photo show

1449411069027_副本 1449411071319_副本 IMG_4071(20221230-141741)_副本 IMG_4072(20221230-141746)_副本

Product parameter details

product parameters

best selling ISUZU FVZ 6*4 refrigerated truck 20000kgs for sale

ISUZU FVZ 6*4 LHD refrigerated truck for sale,

ISUZU FVZ one row and a half luxurious driver cab,

6*4 LHD,

4650+1300mm wheelbase

6HK1-TCH ISUZU 300hp diesel, Euro 5 emission standard

7T front axle/18T rear axles,

11.00R20*10+1 spare

Fastgear 9 speed manual transmission

Central locks + air conditioner + power steering+ electric windows and doors + ABS+ air cut braking, etc.



The overall dimension(L*W*H) of ISUZU refrigerated truck is 9640×2540×3680(mm);

The refrigerated van body dimension(L*W*H) is 7155×2310×2200(mm),the interior and exterior can be chosen the popular glass steelmaterial, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc.  the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.


If installed the meat hangers, the whole refrigerated van should be fastened. And the meat hangers are with double sides to hold one pig.

The cooling unit adopts high quality Chinamade cooling unit.  And the temperature can be adjusted in the driver cab, and the van temperature can reach 18 degree below zero.



Items

Descriptions

Specifications and Types

General

Truck Name

New brand ISUZU 6*4 LHD FVZ refrigerated truck for sale

Drive Type

6*4 LHD

Seating person

3

GVW (kg)

25000

Curb Weight (kg)

10100

Rated mass(kgs)

14750

Overall Dimensions (L*W*H)  (mm)

9640×2540×3680(mm)

Insulation van dimension(L*W*H)(mm)

7155×2310×2200(mm)

Driver cab

ISUZU FVZ luxurious one and a half driver cab with original air conditioner and power steering

Engine

Engine Model

6HK1-TCH ISUZU 300hp

Engine Brand

ISUZU

Fuel Type

Diesel

Max output (hp/rpm)

300hp/221KW

Emission Standard

Euro 5

Capacity (cc)

7790

Engine type

6 cylinders in line inter-cooling diesel engine

Chassis

Chassis Brand

Isuzu

Tire Specification

11.00R20 16PR *10+1 spare

Wheelbase (mm)

4650+1300mm

Axle No.

3

Steering Wheel

LHD(left hand drive)

Gear Box

Fastgear 9 speed manual

Brake

Air brake

 Bridge

7T front axle/18T rear axles,

Cold Room

Box inner dimension(mm)

7155×2310×2200(mm)

Box Side

Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer

Box Floor

Baseboard adopts anti-skipping diamond board,

Doors

Frame of standard rear double doors

Reefer

Reefer unit

Choose high quality China-made/USA CARRIER brand dependent frozen reefer, the lowest temperature up to -15℃. And the reefer can be adjusted at the driver cab.
