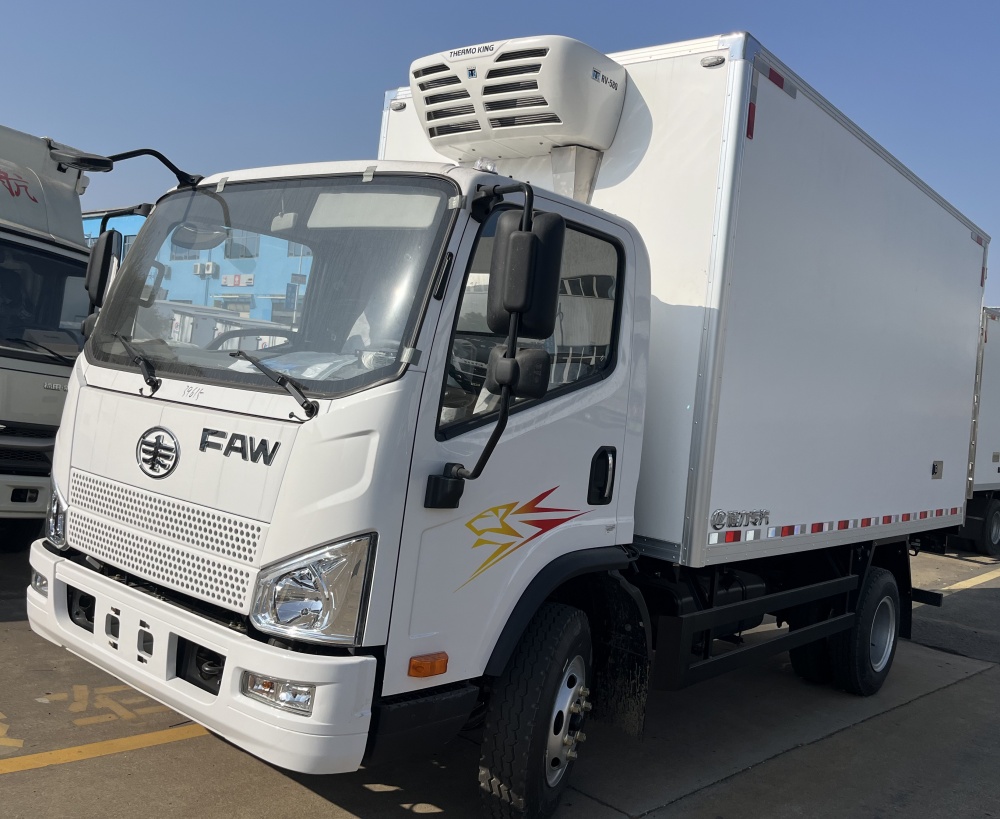

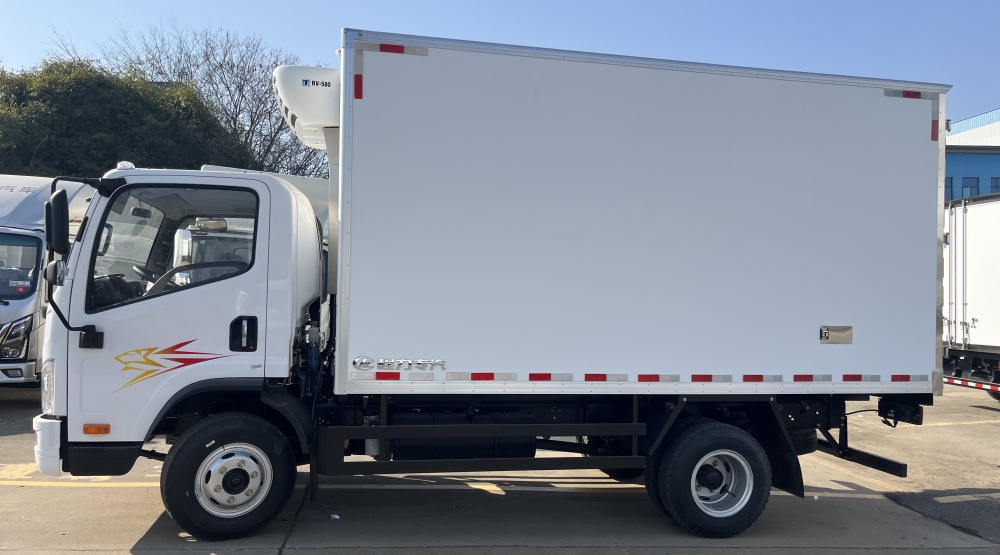

HOT SALE! 5000kgs FAW 4*2 LHD RHD refrigerator van vehicle for sale
FAW tiger VH single row driver cab
4*2 LHD(Left hand drive), RHD optional
3300mm wheelbase
YC4D130-33 yuchai 130hp diesel engine,
7.50R16 tires*6+1 spare
100Liters oil tanker, air conditioner, etc.
the overall dimension(L*W*H) of 5000kgs refrigerator trucks is 5995×2096×2950,3050(mm) ; while the refrigerator van dimension(L*W*H): 4210×2010×2000,2100(mm).
main technical parameters of FAW brand diesel insulated van vehicle is as below.
Items | Descriptions | Specifications and Types |
General | Truck Name | FAW refrigerated truck |
Drive Type | LHD | |
Payload (kg) | 3ton to 5ton | |
Seating person | 2-3 | |
GVW (kg) | 6495 | |
Curb Weight (kg) | 3500 | |
Overall Dimensions (L*W*H) (mm) | 5995×2096×2950,3050 | |
Insulation van dimension(L*W*H)(mm) | 4210×2010×2000,2100 | |
Driver cab | FAW single row driver cab | |
Engine | Engine Model | YC4D130-33 |
Engine Brand | Yuchai | |
Fuel Type | Diesel | |
Max output (hp/rpm) | 130hp/96KW | |
Emission Standard | Euro Ⅲ | |
Capacity (cc) | 4217 | |
Engine type | 4 cylinders, inter-cooling diesel engine | |
Chassis | Chassis Brand | Faw |
Tire Specification | 7.50R16 | |
Wheelbase (mm) | 3360 | |
Axle No. | 2 | |
Steering Wheel | LHD, RHD optional | |
Gear Box | 6 speed gearbox, manual | |
Brake | Air brake | |
Air-conditioner | No, can be installed | |
Cold Room | Box inner dimension(mm) | 4210×2010×2000,2100 |
Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
Back Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. | |
Meat hooks | There will be 100 units of stainless steel double sides’ meat hooks and three slid guides on the top roof. | |
vent slots | Aluminum alloy vent slots on the baseboard for the long distance’ transportation. | |
Cooking unit | High quality China-made brand frozen cooling unit | the temperature can be adjusted from 0℃ to -18℃. And the cooling unit can be adjusted at the driver cab |
The refrigerated truckisalso calledrefrigerated cold room van truck,freezer box truck,refrigerated truck box,mobile refrigerated container,refrigerator truck,freezer truck,freezer van,etc. The refrigearted trucks can be used to transport vegetables, food, ice cream, medication,etc.
The refrigerated truck is consists of truck chassis, cold room, refrigerated unit, etc.The refrigeration unit we usually use are Thermo king, Carrier, Dongin, Hua Tai, Han Xue,etc.The refrigerated temperature of refrigeration units are 5 degree Celsius below zero, 10 degree Celsius below zero, 15 degree Celsius below zero, 18 degree Celsius below zero.You also can install heating refrigerator to make the temperature above zero in bitter winter.
The material of cold room van can be color plate, fiberglass, stainless steel, aluminium alloy,etc. The surface of refrigerated trucks are smooth and can be pasted with your logo, bill, etc.
The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
