our industry advantage

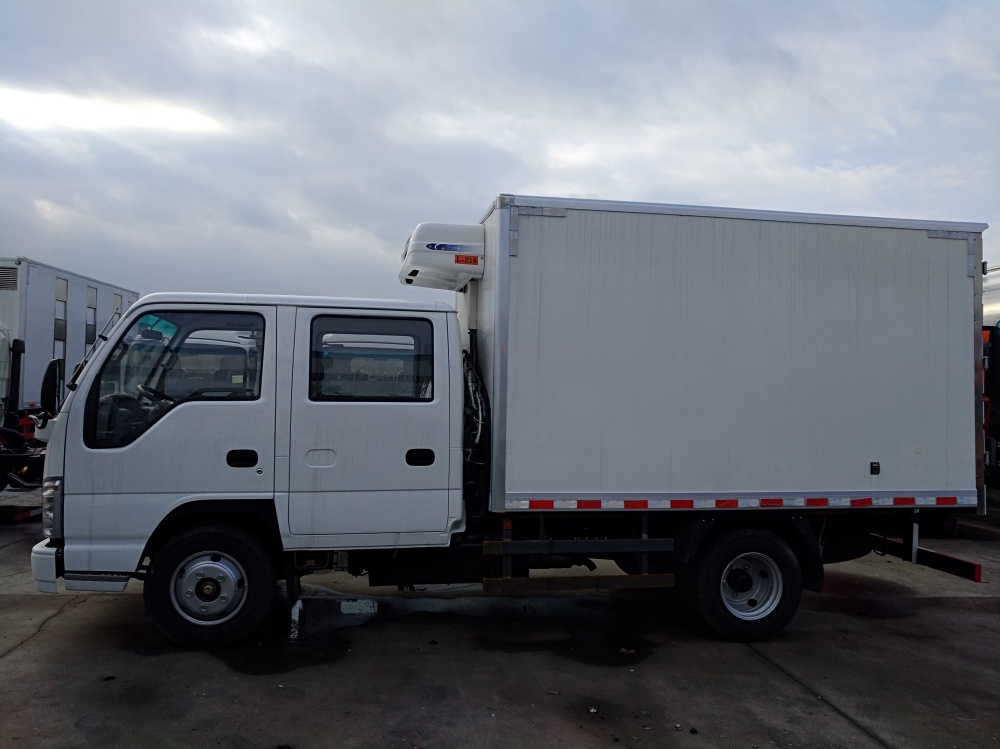

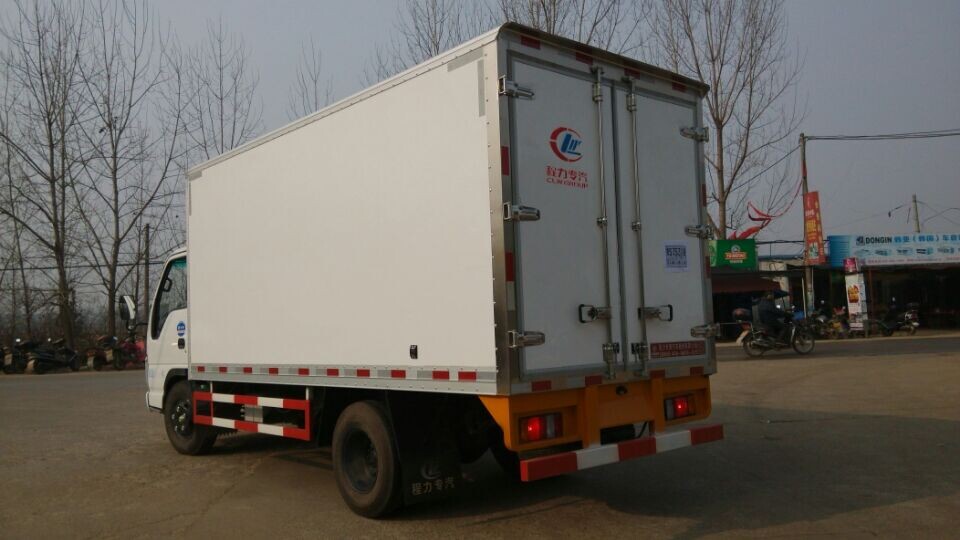

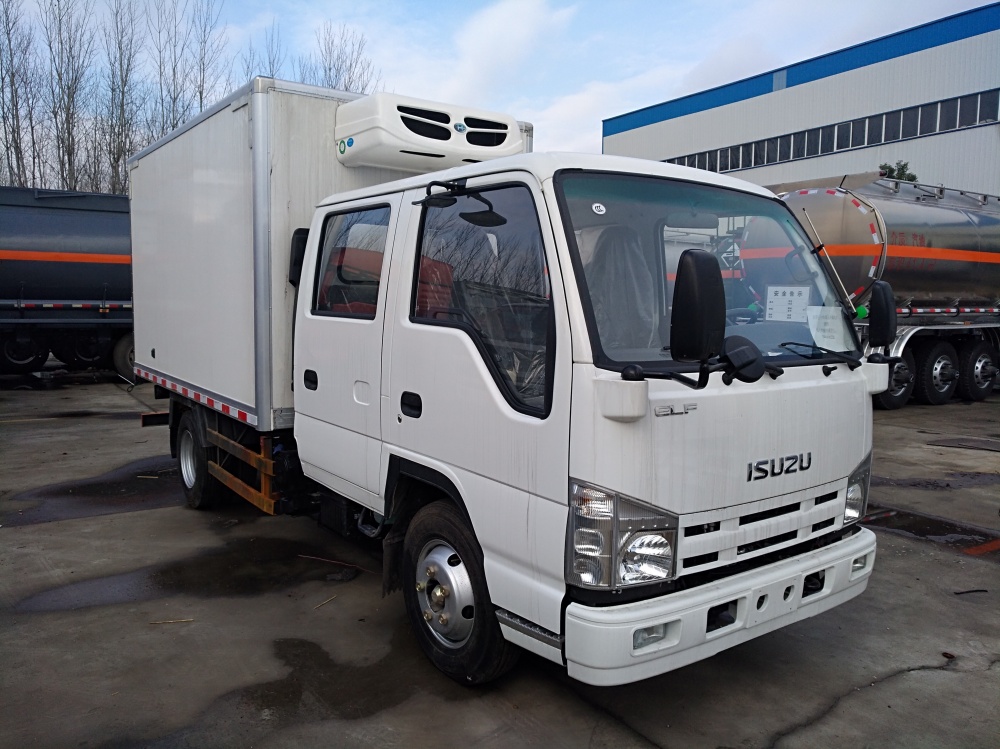

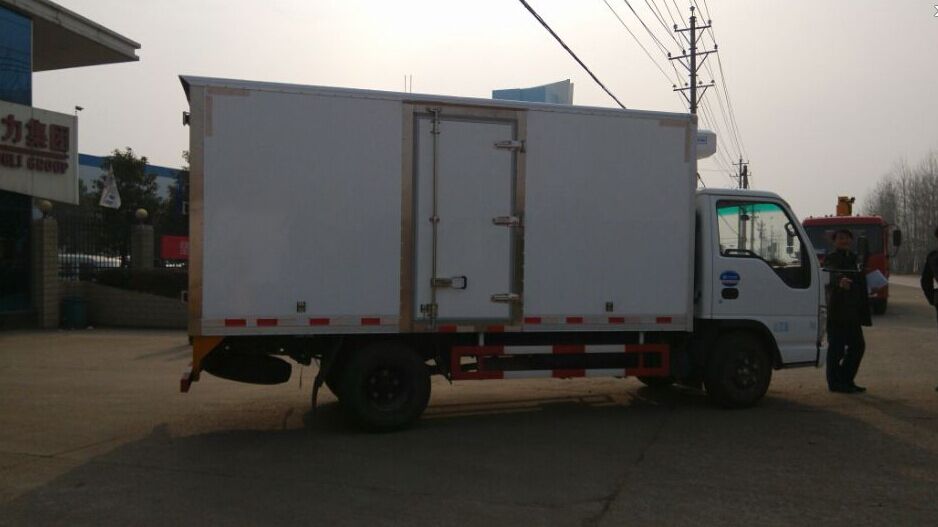

vehicle photo show
product parameters
| loading capacity | 1500kgs-2000kgs | volume | 10cubic meters | van dimension | 3150X1750X1750 | truck head | ISUZU | driving type | 4*2 LHD, 4*4 LHD RHD optional | engine | ISUZU diesel engine | wheelbase | 3360mm wheelbase | doors | double rear doors, side door optional | insulation | 80mm thickness PU foam | refrigerated reefer unit | China-made brand or USA CARRIER | Color | different color upon request, | MOQ | 1 UNIT |
|---|
ISUZU 100P small refrigerated truck for sales
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated truck, refrigerator truck, insulation body truck, reefer van truck, freezer van truck, etc. in China. With many years'experience in developing, Chengli Special Automobile Co., Ltd. could produce and supply high quality and competitive ISUZU refrigerated truck, dongfeng refrigerator truck, FAW freezer van truck, Foton reefer van truck, JAC insulation body truck, JMC refrigerated truck, refrigerated van semitrailer, etc. And the cooling units of the refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. can choose China faous brand or exported ones, and the temperature in the insulation body can be adjusted from -5 degree to -18 degree.
The interior and exterior of the insulation body can be chosen the popular glass steel material, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 80mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | ISUZU LHD Refrigeration truck |
| Drive Type | 4*2 | |
| Fact Loading Weight(kg) | 1500-3000 | |
| Curb Weight (kg) | 2660 | |
| Overall Dimensions (mm) | 5995×1930×2870 (L*W*H) | |
| Engine | Engine Model | 4JB1CN |
| Engine Brand | ISUZU | |
| Fuel Type | Diesel | |
| Power | 98Hp/72KW | |
| Emission Standard | Euro IV | |
| Displacement(ml) | 1012 | |
| Chassis | Chassis Brand | Chang’an |
| Tire Specification | 6nos x 7.00-15 10PR | |
| Wheelbase (mm) | 3360 | |
| Axle No. | 2 | |
| Steering Wheel | Left hand drive with power steering, Right hand drive is optional | |
| Gear Box | ISUZU MSB 5 speed forward, manual | |
| Audio | USD coupling radio | |
| Driver cab | ISUZU double rows driver cab with A/C(single row driver cab is optional) | |
| Brake | Oil brake with vacuum booster pump | |
| Cold Room | Box inner dimension(mm) | 3150X1750X1750 |
| Box Side | External/internal of the van are fiberglass between them is Polyurethane foam material. All joint glued and urethane sealed and with high-tensile screw to fasten. External corner capped with radius aluminum extrusions. | |
| Box Floor | One layer cold-rolled steel plate, one layer polyurethane, one player bamboo plywood and cover with anti-skid Checkered plate floor. | |
| Doors | Double rear doors with stainless steel door furniture And refrigeration furniture door seals. door buffers And stainless steel door retainers included. | |
| Refrigerator Unit | Refrigeration unit | China Han Xue brand |
| Refrigerated temperature | -5° to -18 degree |
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
