mini 4000Liters 1100gallons mobile diesel petrol refueling tanker Dongfeng RHD
Dongfeng captain 4*2 RHD mobile diesel petrol refueling tanker vehicle adopts dongfeng captain 4*2 RHD truck head, 3308mm wheelbase, JE493ZLQ3A 75KW/102hp diesel engine, 5+1 manual type gears, 7.00R16 tires*6+1 spare, etc.
The volume of the dongfeng captain 4*2 RHD mobile diesel petrol filling truck is 4KL 5KL 1000gallons 1200gallons.
One compartment with one European standard manhole

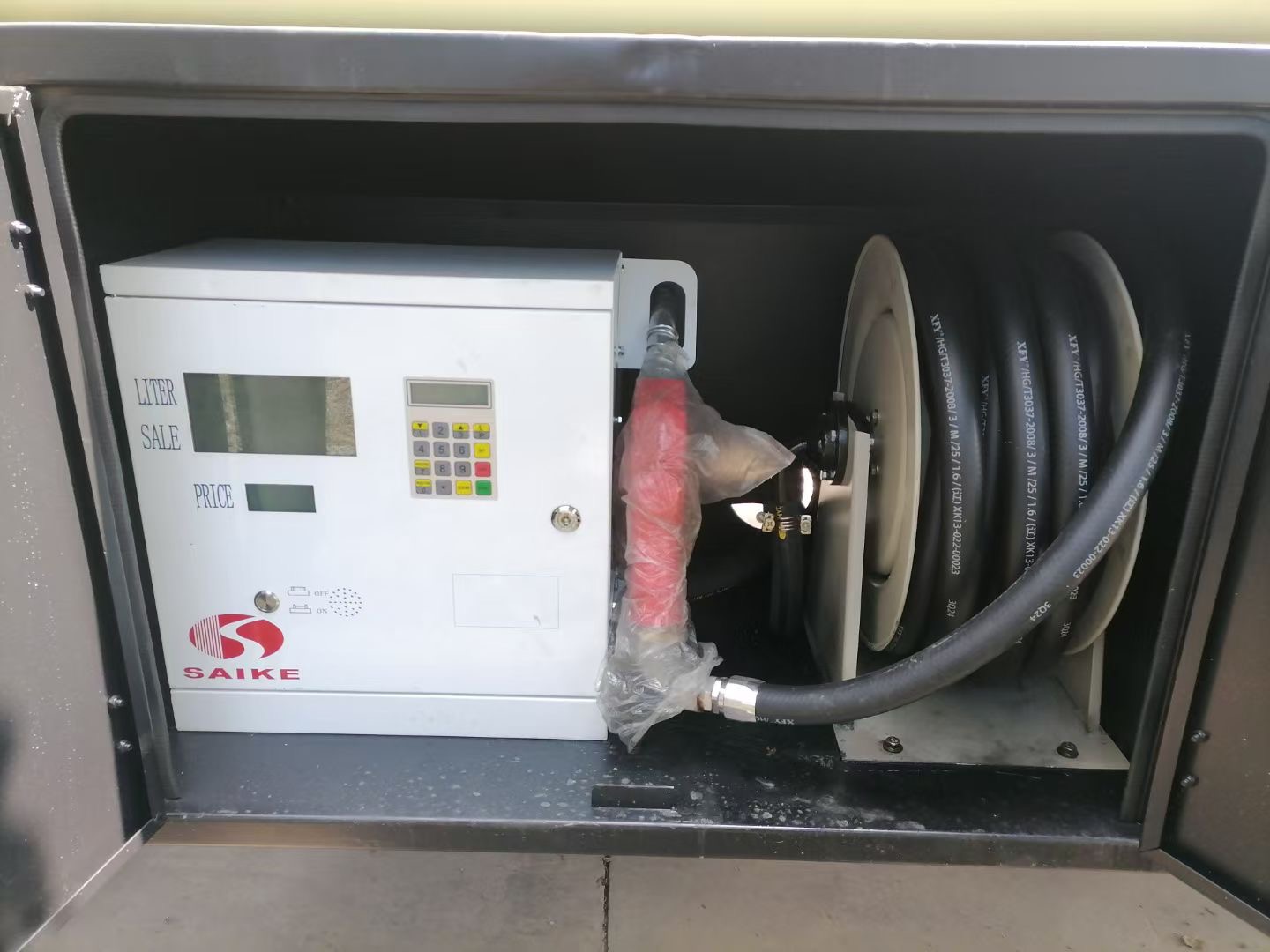

one fuel dispensing machine with 15m length self-return reel and filling nozzle
Pipelines, fire extinguishers, etc.
the color of the truck is up request.

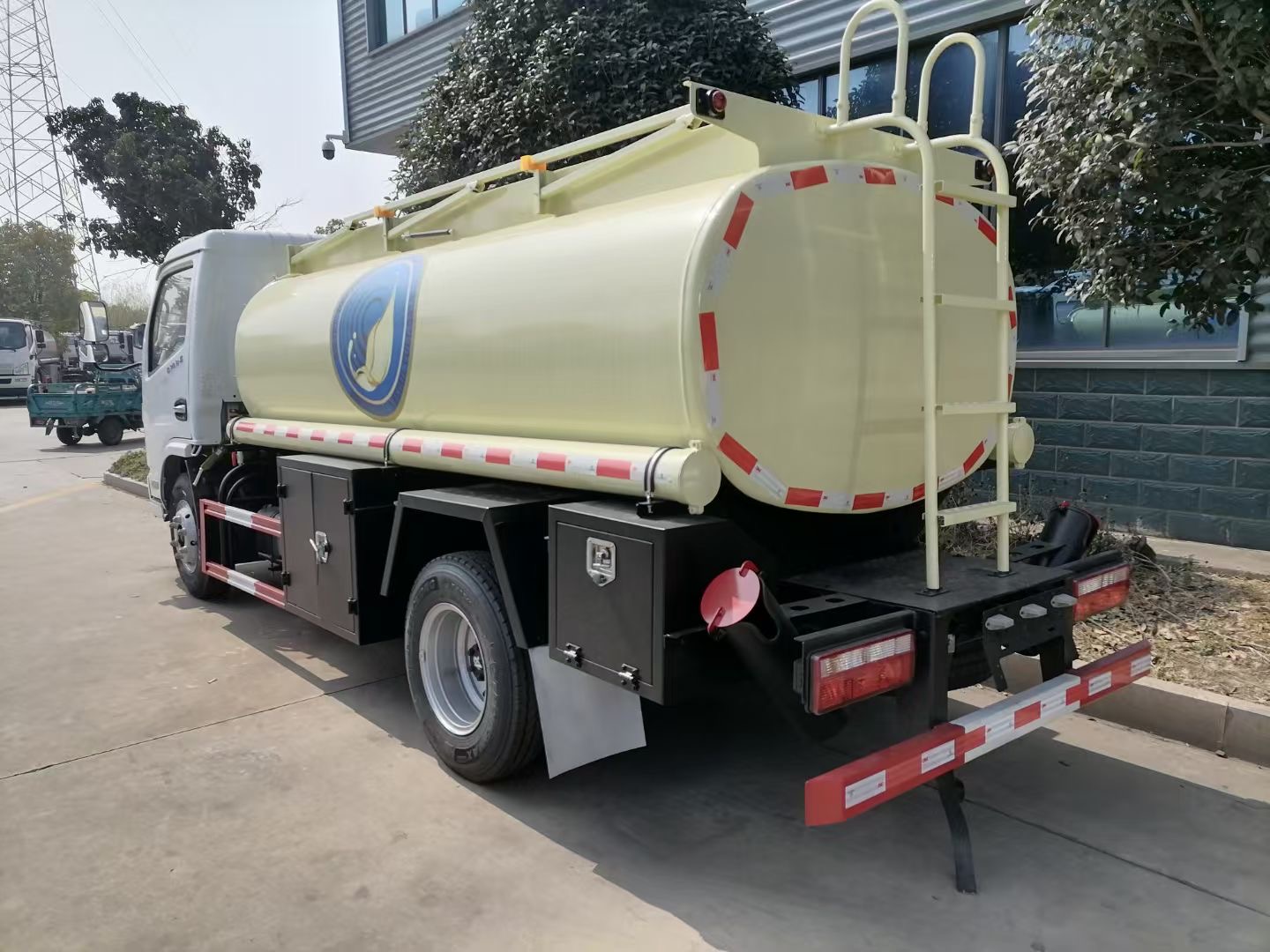

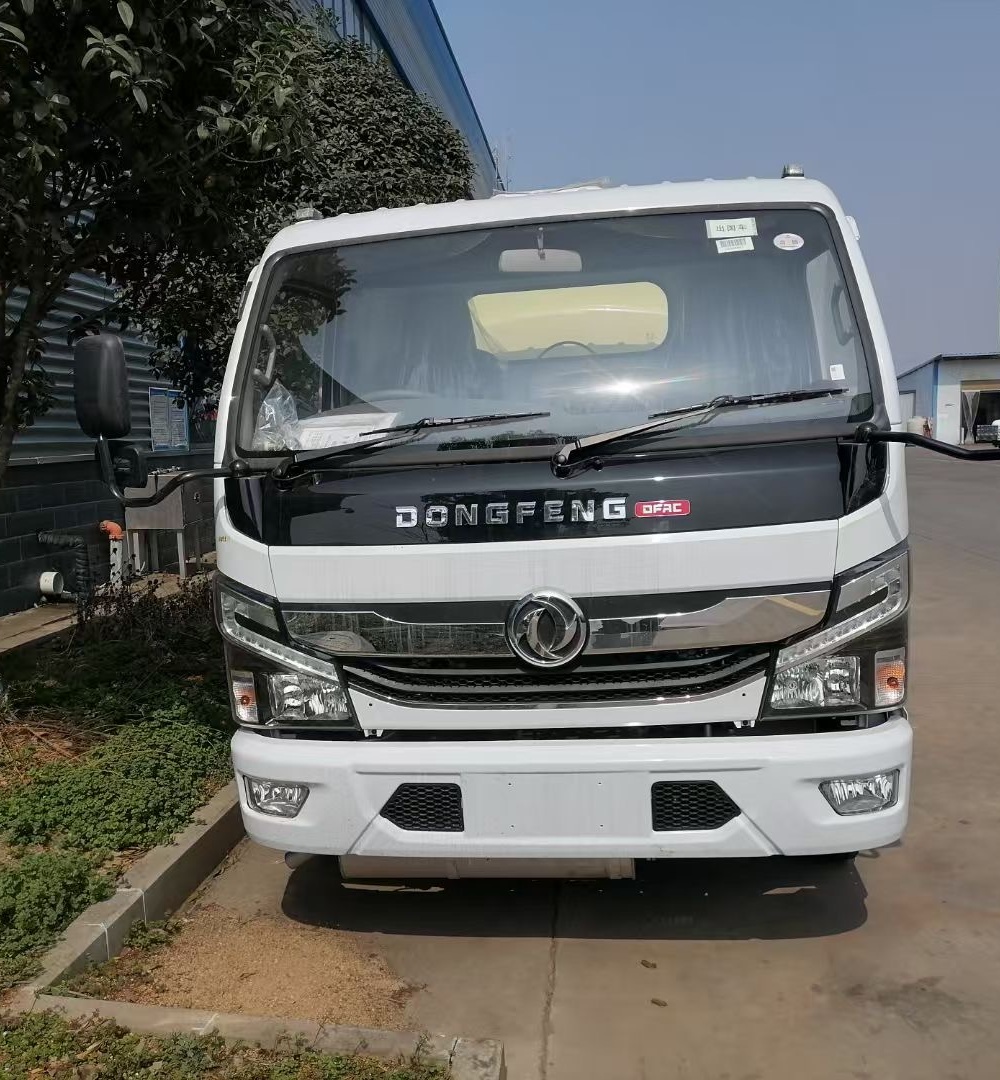

More pictures of 1100gallons mobile fuel bowser tanker truck are as below.
the specification of dongfeng captain 4*2 RHD mobile fuel dispensing tanker truck is as below.
Main technical parameters | |||
Dongfeng 4*2 RHD 4500Liters oil bowser for sale （CLW5061GJY3） | |||
Total mass(Kg) | 6495 | Tank volume(Liters) | 4500 |
Rated mass(Kg) | 3000 | Overall dimension(mm) | 5990×1960×2400 (mm) |
Curb mass(Kg) | 3365(Kg) | Driver cab person | 2-3 |
Approach/departure angle(°) | 18/12(°) | Front/rear suspension(mm) | 1032/1658 (mm) |
Axle nos. | 2 | Wheelbase(mm) | 3300 |
axle load (Kg) | 2480/4015 | Max speed (Km/h) | 80 |
Chassis main parameters | |||
Chassis model | EQ | Chassis manufacturer | Dongfeng |
Tyre specification | 7.00R16 rail tires | Tyre nos. | 6+1 |
Steel spring | 8/9+5 | Front tread(mm) | 1506(mm) |
Fuel type | Diesel | Rear tread(mm) | 1466 (mm) |
Transmission | 5 speed transmission | Air-conditioner | No, choose to install |
Power steering | Yes | Front/rear bridge | 1.8tons/3.5tons |
Electronic line | 24V | Exhaust braking | Yes |
brake | Air brake | Driver cab | Dongfeng single row driver cab |
Emission standard | Euro 3 | ||
Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
JE493ZLQ3A | wushiling | 2999 | 75 |
Engine type | 4 cylinders in line, Turbocharged and intercooled diesel engine | ||
other Equipment or performances | 1. The fuel tanker shape is ellipse, adopts high quality GB carbon steel material, with single one compartment and several anti-wave sheets. And the oil tanker volume is 4500Liters. | ||

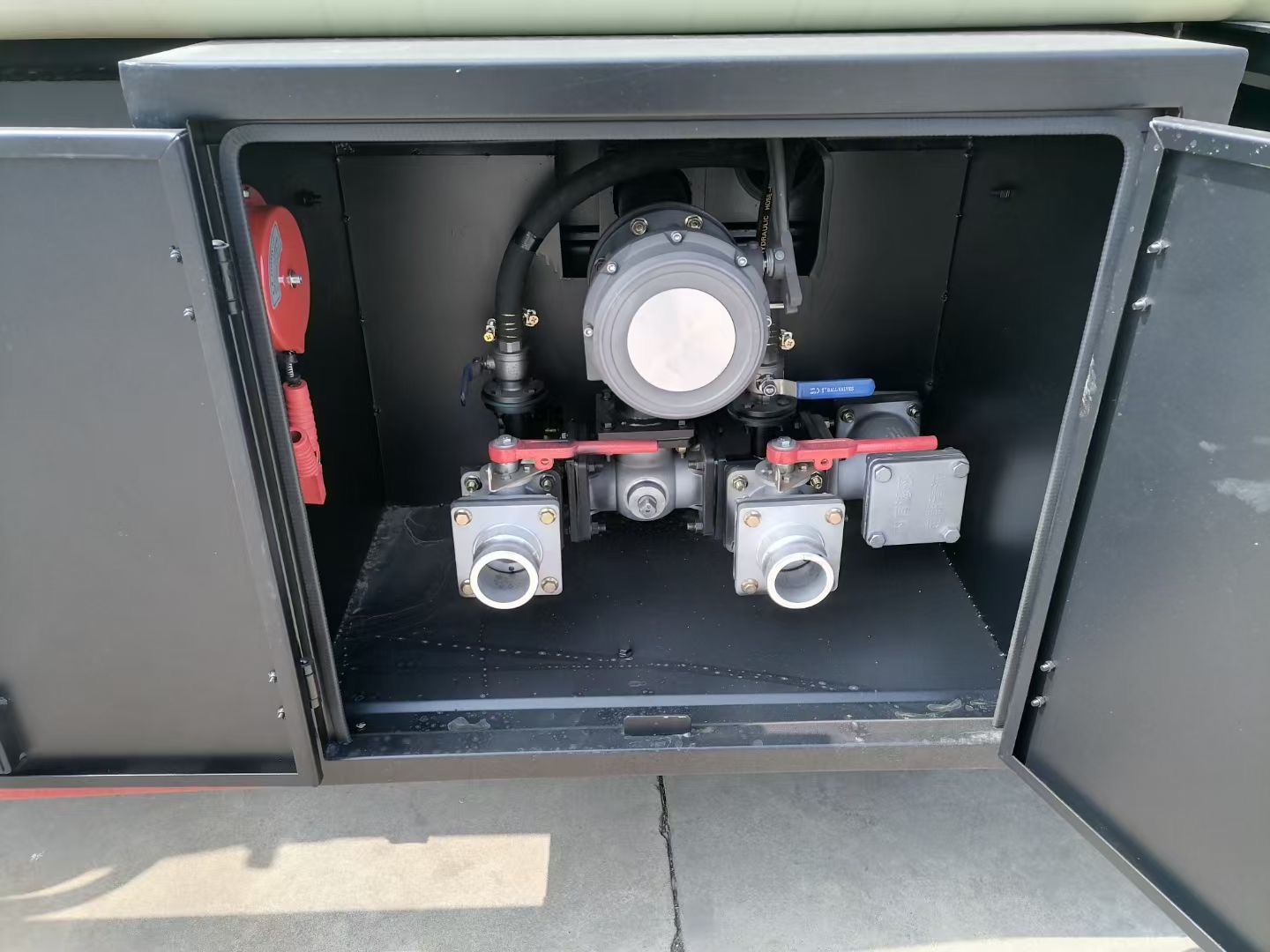

2. Equipped with special carbon steel oil pump, one Euro standard manhole, one self-discharging valve at the tanker bottom, one aluminum ally emergency shutoff device, one unit elevating guardrail; one unit of China-made English words small flow refueling dispenser of 15m self-return Refueling reel and refueling nozzle, pipeline, ladder, one toolbox, etc. | |||
3, The truck is painted metallic coating. And the fuel dispenser is installed at the side under part as the picture show. | |||
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is +86 13329899995.
