Customized ISUZU poultry day old chicks transported truck for sale
The foreign trade version of the poultry transport vehicle with a gas mixing chamber is fully equipped with air filtration and humidification, fuel heating, dual-temperature refrigerator, central control and many other configurations just to ensure the safety of long-distance transportation of poultry and maximize customer interests.

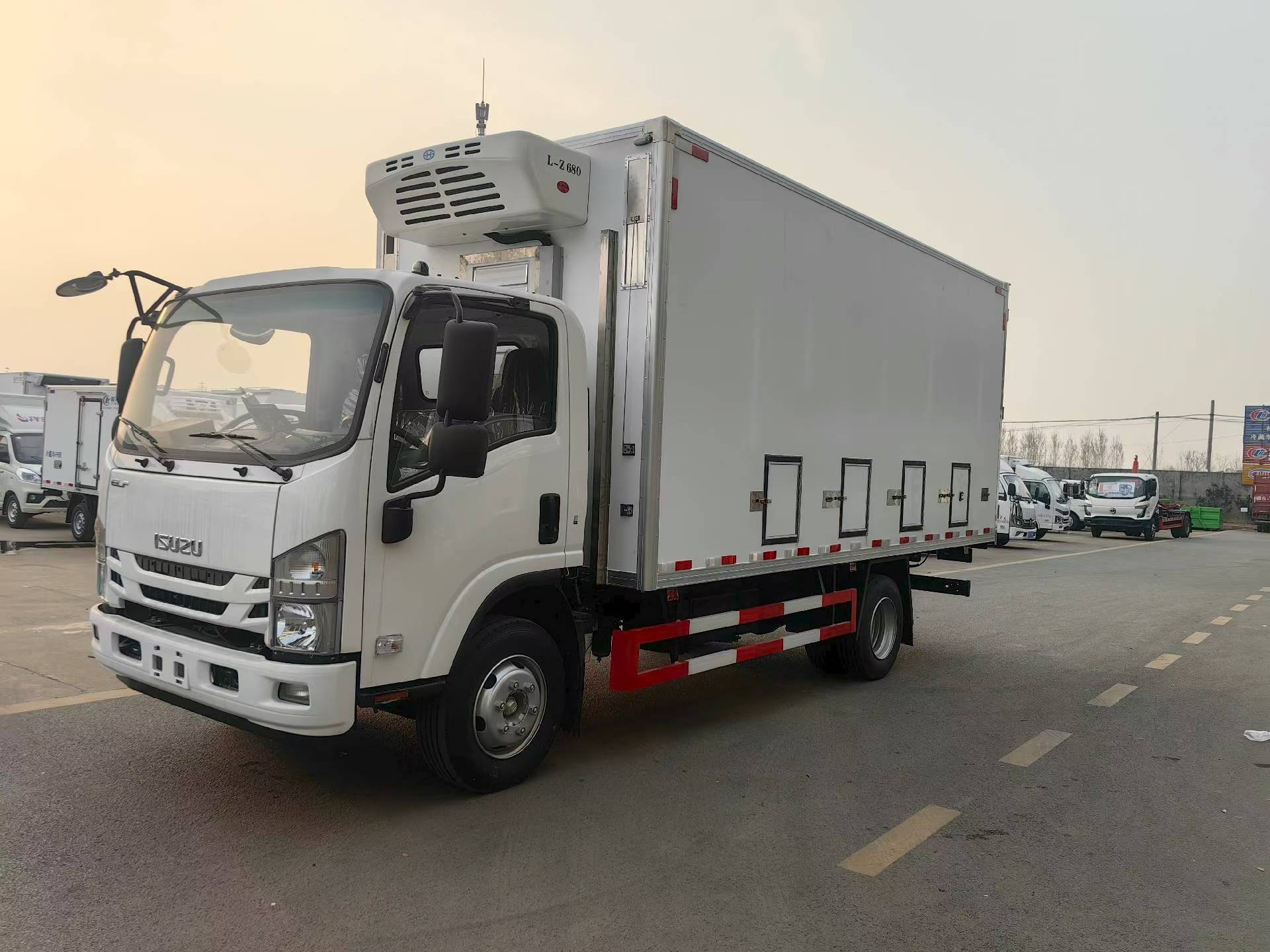

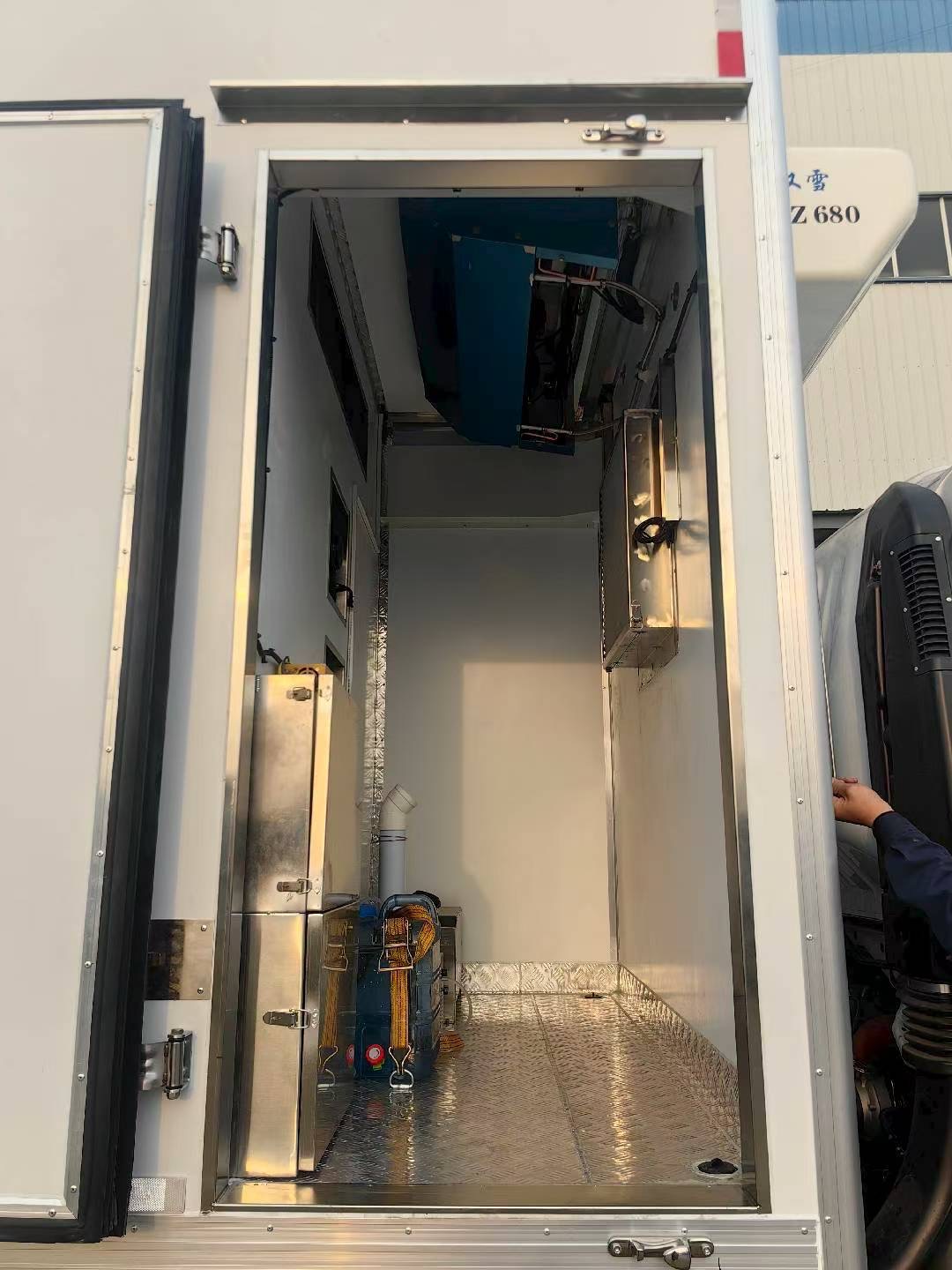

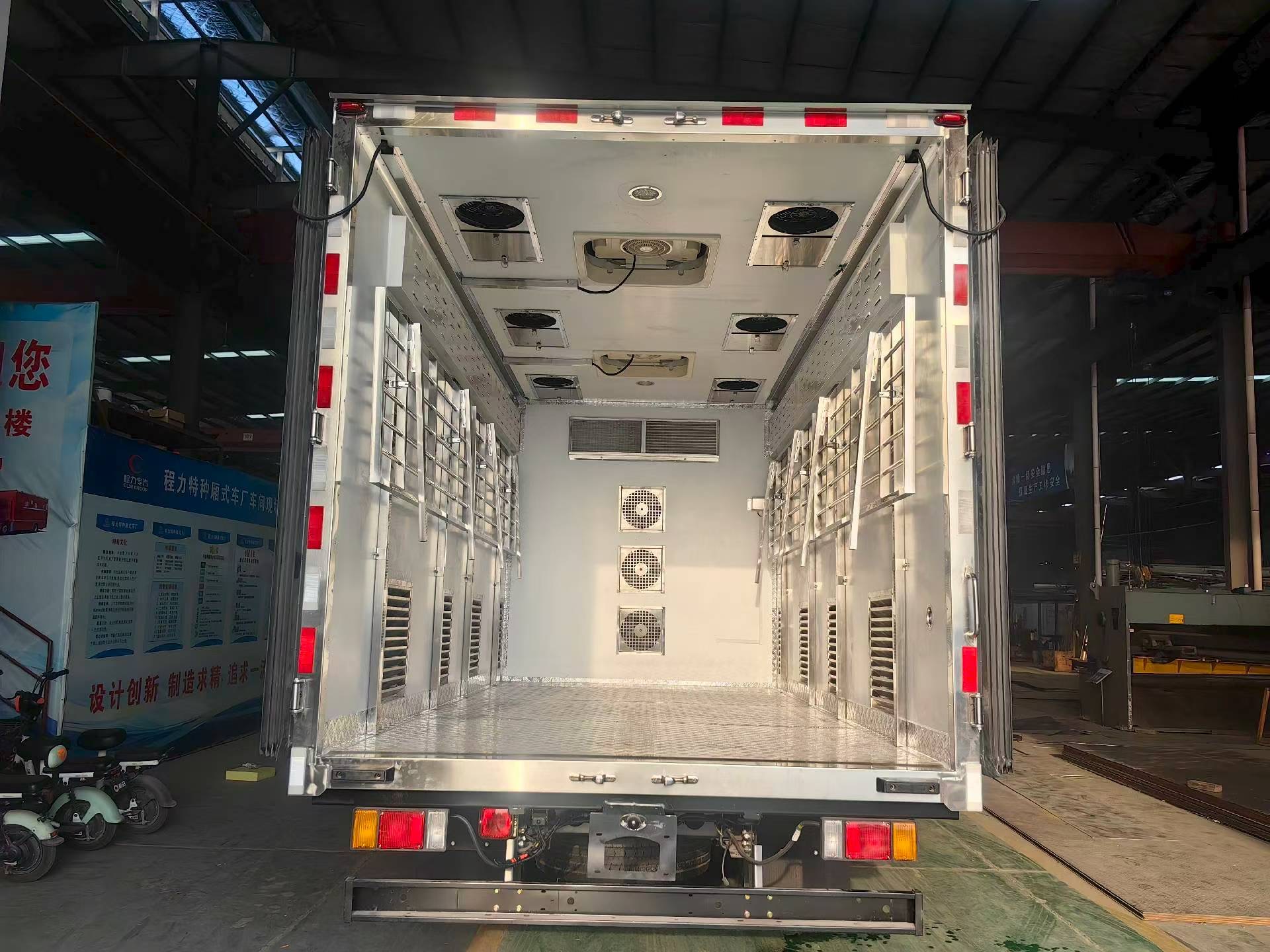

Look at the pictures of ISUZU poultry day old chicks transported truck is as below.
best selling ISUZU poultry day old chicks transported truck for sale

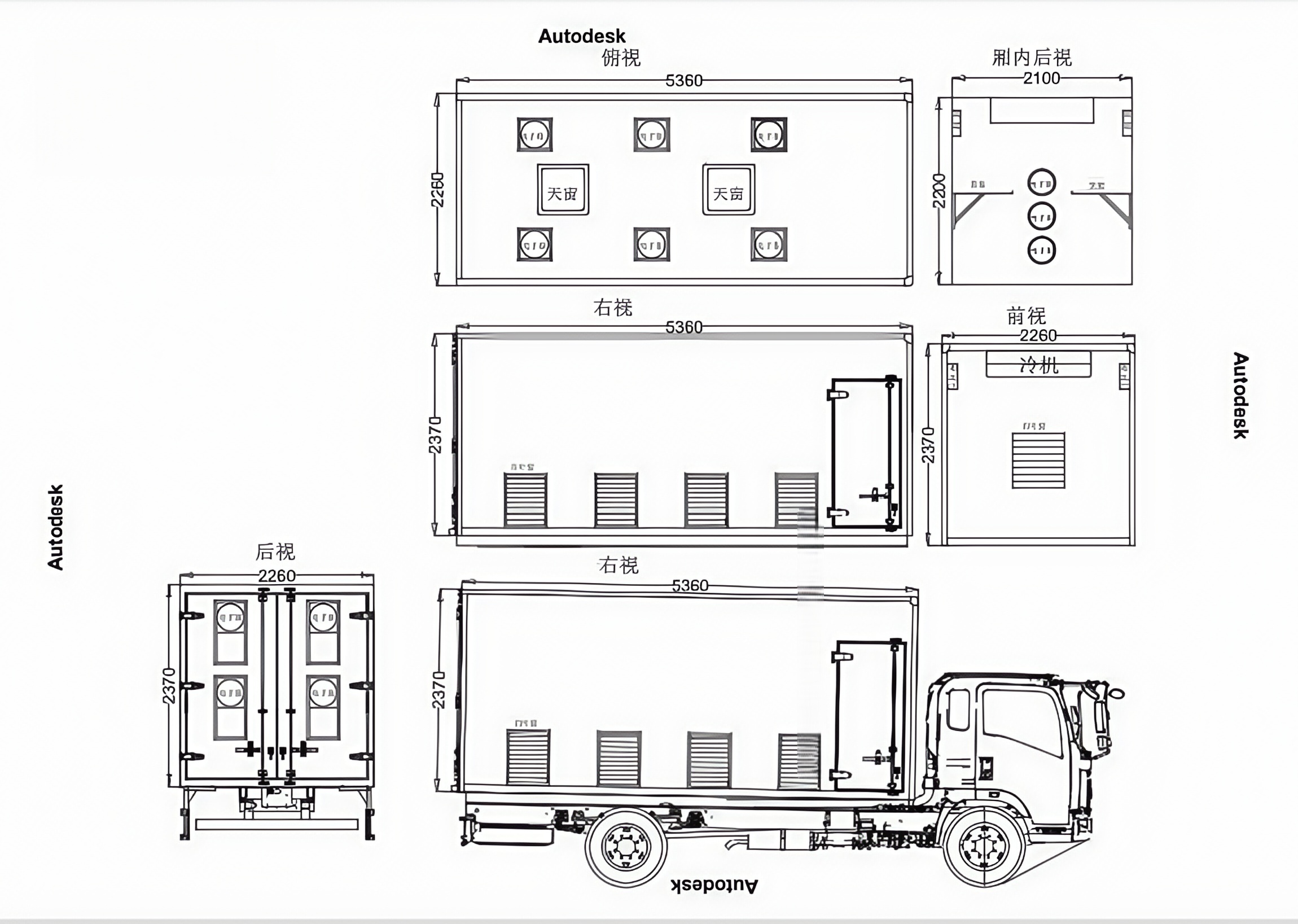

The drawing pictures of ISUZU day old chicks transported truck for sale
ISUZU 700P single row driver cab
4*2 LHD
3815mm wheelbase,
4HK1-TCG60 ISUZU 190HP diesel engine,
ISUZU MLD 6+1 gears, manual type
235/75R17.5 Tires*6+1 spare
Air conditioner, power steering, etc.
The overall dimension(L*W*H): 7300*2260*2370(mm)
The dimension of the van body dimesion(L*W*H): 5360*2260*2370(mm)
Main parameters of ISUZU baby chick transported truck chassis
Product name | ISUZU 4*2 day old chick transported truck | ||
Overall dimension(L*W*H)(mm) | 7300*2260*2370 | Chick van box dimension(L*W*H)mm | 5360*2260*2370 (mm). |
Drive type | 4*2 LHD, RHD is selective | Total mass | 8495 |
Gearbox | 6 speed gear box | Tyre specification | 5360*2260*2370 |
Power steering | Yes | Driver cab | ISUZU 700P single row driver cab |
Engine | ISUZU 190HP | Emission standard | Euro 3 |
Main technical parameters of day old chick van body
Performance and consumption | |||
Heating system | Watering system | Without, client choose to install | |
Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
Ventilation system | Air duct installed on the floor for air flow | Two/three lines | |
Cold air ducts on the two sides of the van body | Two cold air ducts for the refrigerated reefer | ||
Blind windows | 4 sets of blind windows for the left and right van sides (as the pictures show); 2 sets of blind windows for the front van plate. | ||
electronic ventilator fans | 1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 4 sets of electronic ventilator fans for the van top | ||
Sky-window | Top mounted sky windows*2 Sky-windows: 2*1=2 | ||
Dimension | |||
Chick van box body | Length | 5360mm | |
Width | 2260mm | ||
Height | 2370mm | ||
Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; | ||
We Chengli Special Automobile Co., Ltd. is one of the leading manufacturer and supplier of special purpose vehicles in China since 2004s. With so many years' development, we Chengli Special Automobile Co., Ltd. can manufacture and sell over 2000 models trucks.
We welcome more and more clients come to our facotory and buy our trucks in the near future.
