At the beginning, we finally finished two units of 18cbm vacuum sewer tanker trucks, which customized for clients from Nicaragua.
This two units of SHACMAN vacuum sewer truck adopt SHACMAN H3000 cummins engine 10 tires.

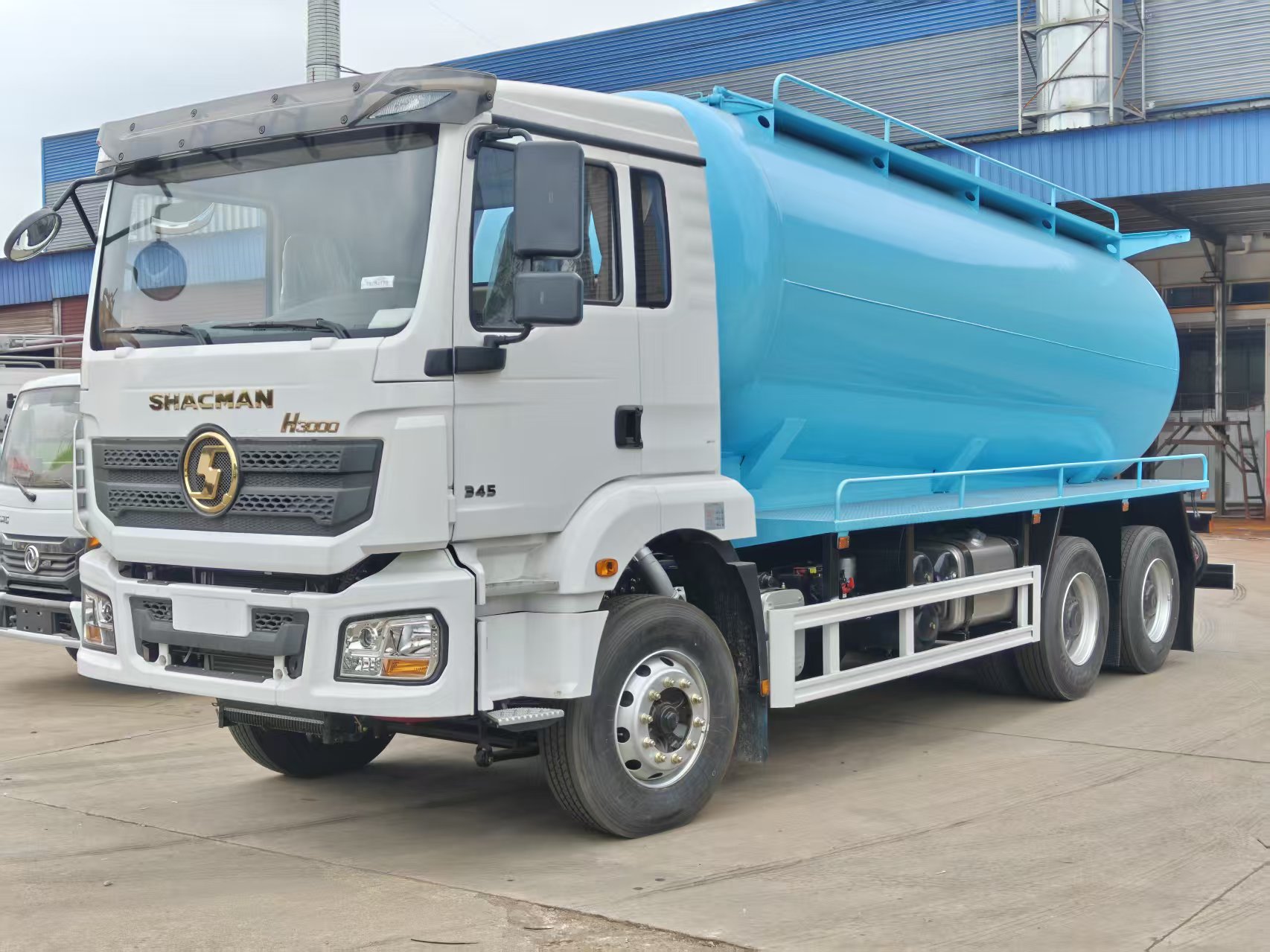

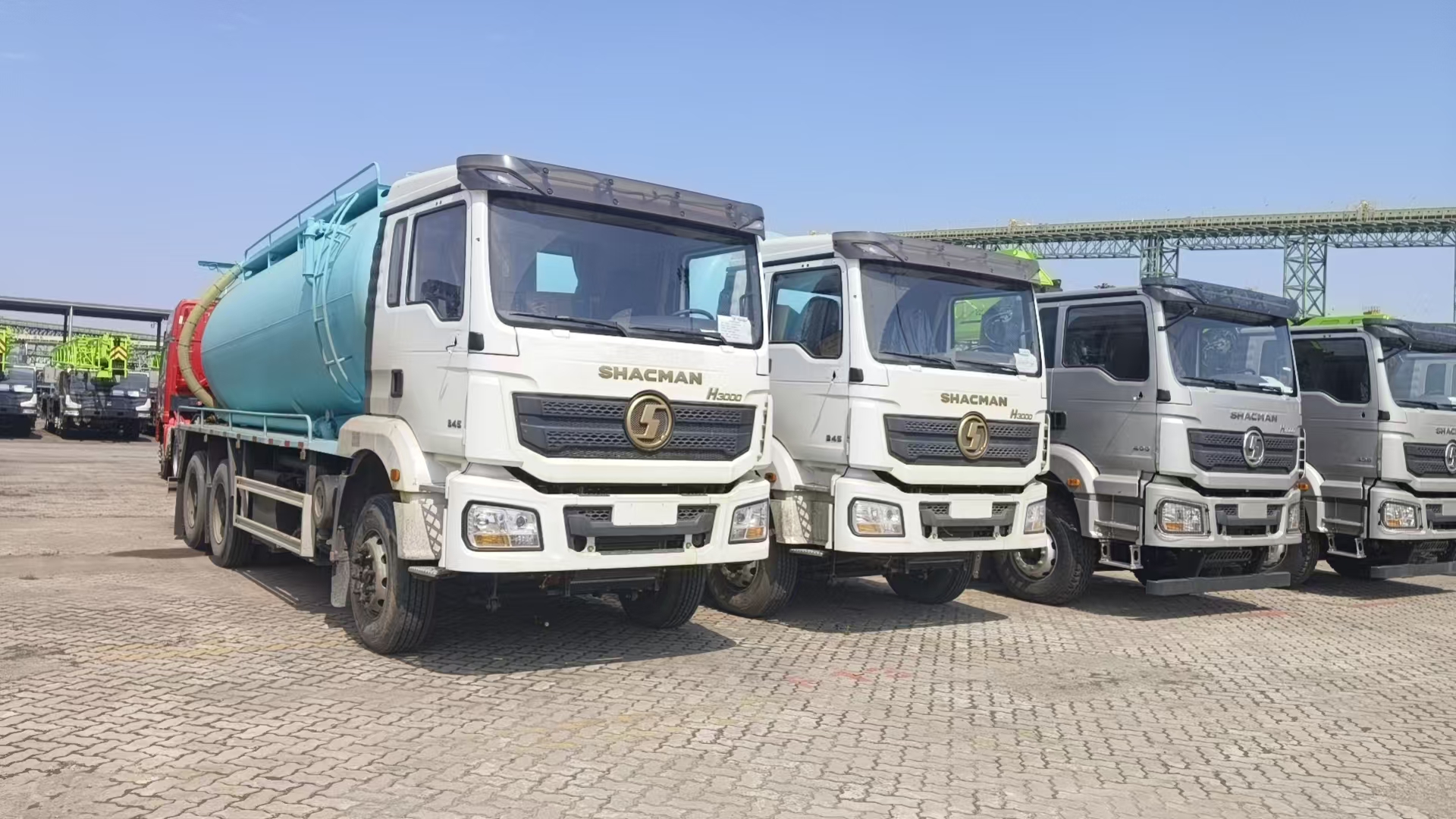

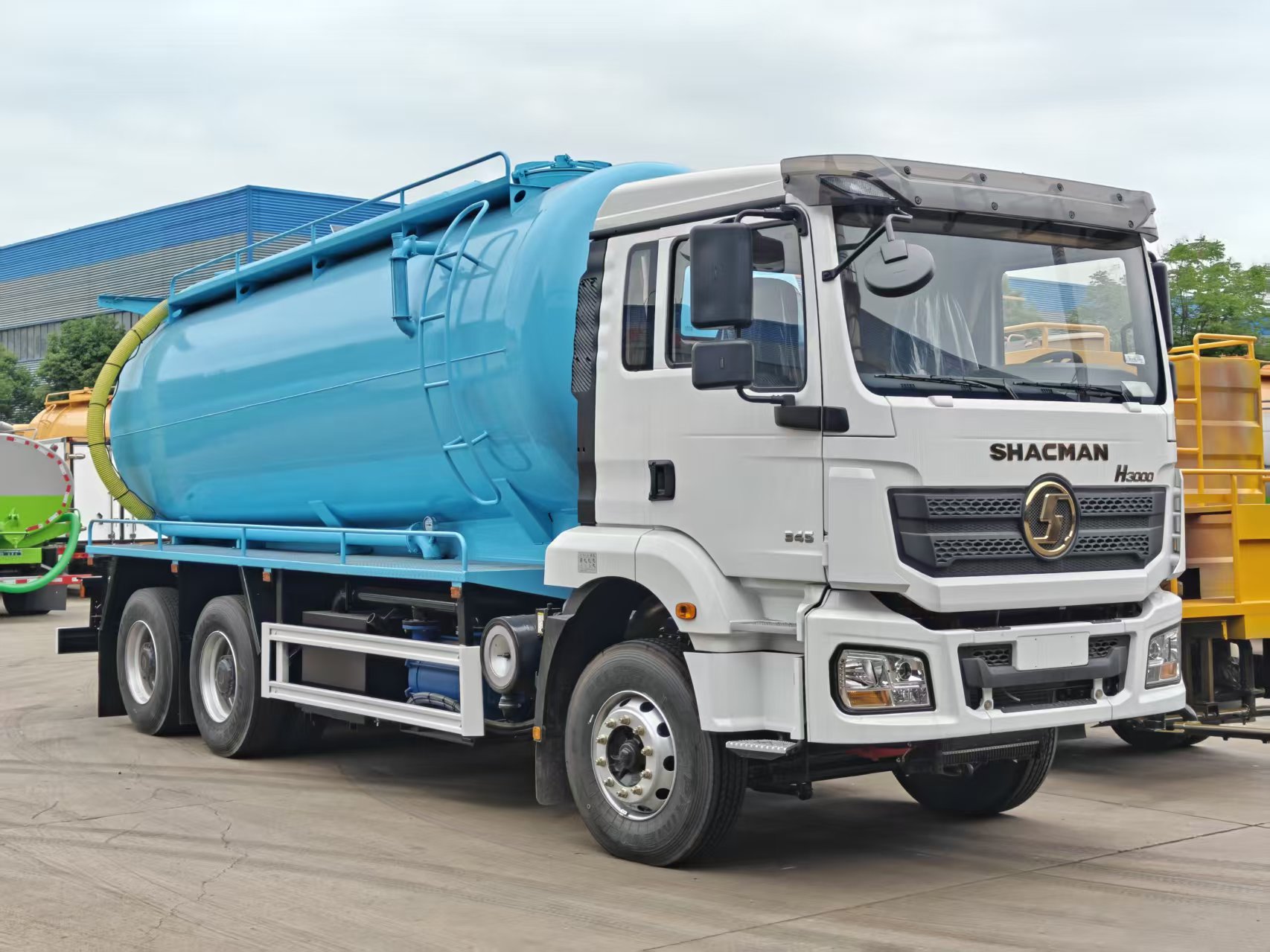

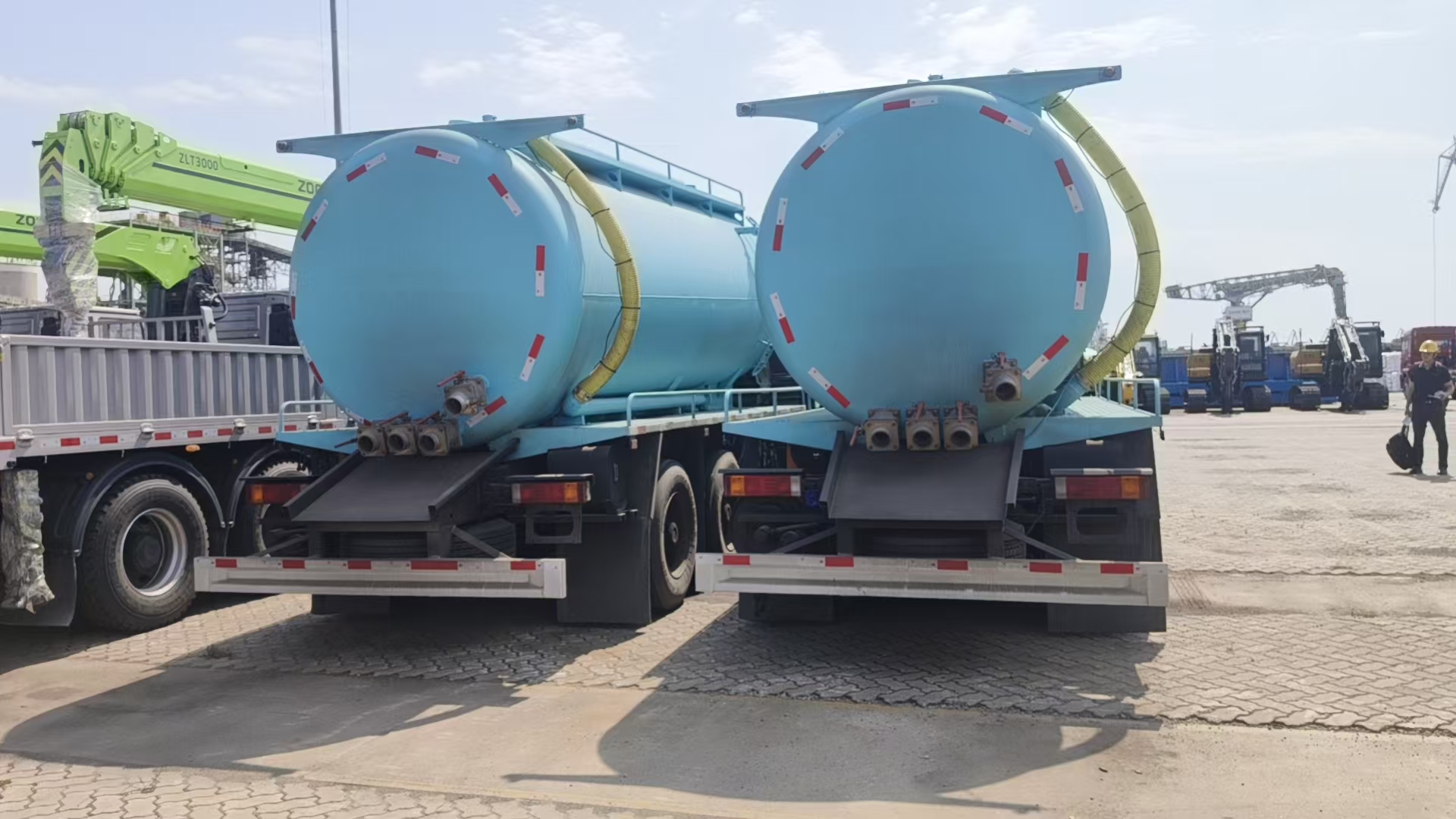

More pictures of SHACMAN vacuum sewer tanker truck are as below.
SHACMAN VACUUM TANKER TRUCK for sale
The specification of SHACMAN vacuum sewer tanker truck is as below.
Truck chassis：
SHACMAN H3000 one row and a half driver cab
6*4 LHD,
ISME345 30 Cummins 345hp diesel engine, with JACOB assistant brake
10JSD180 FAST 10+2 gears, manual type
4375+1400mm wheelbase
MAN 7.5T front axle/MAN 16T double rear axles
300Liters oil tanker
11R22.5*10+1 spare,
The volume of the vacuum tanker is 18 cubic meters adopts high-quality carbon steel material; thickness of the tanker wall is 8mm and wave-proof plate is reasonably designed in the middle of the tank body.
Install Shandong Zibo 2BE204 water circulation pump (or double 10-ton oil circulation vacuum pump)
Install overflow valve and add a stainless steel filter to the vacuum pipe (to prevent impurities from entering the pump)
Install a 100-diameter seismic pressure gauge at the position of the sewage suction four-way valve, which can resist the vibration of the working environment and reduce the pulsation of the medium pressure
A 100-diameter sewage suction port, a 600-diameter hydraulic sewage discharge port at the tail, and a 100-diameter sewage discharge port; or customized for clients.
The tank body has a lifting and unloading function, and the tail sewage discharge port can be hydraulically opened with a locking device.
7, The tank top is designed with a platform, a guardrail, and 2 tank ports are installed to facilitate feeding and cleaning of the tank body from the top.
We CLW GROUP AUTOMOBILE CO., LTD. can manufacture and sell vacuum tanker trucks from 3cubic meters to 30cubic meters and bigger volume vacuum sewer tanker semitrailers, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
