two units of SHACMAN H3000 bulk feed trucks for Algeria
Recently, two units of SHACMAN H3000 bulk feed transported trucks are finished, ready for shipping to Algeria.

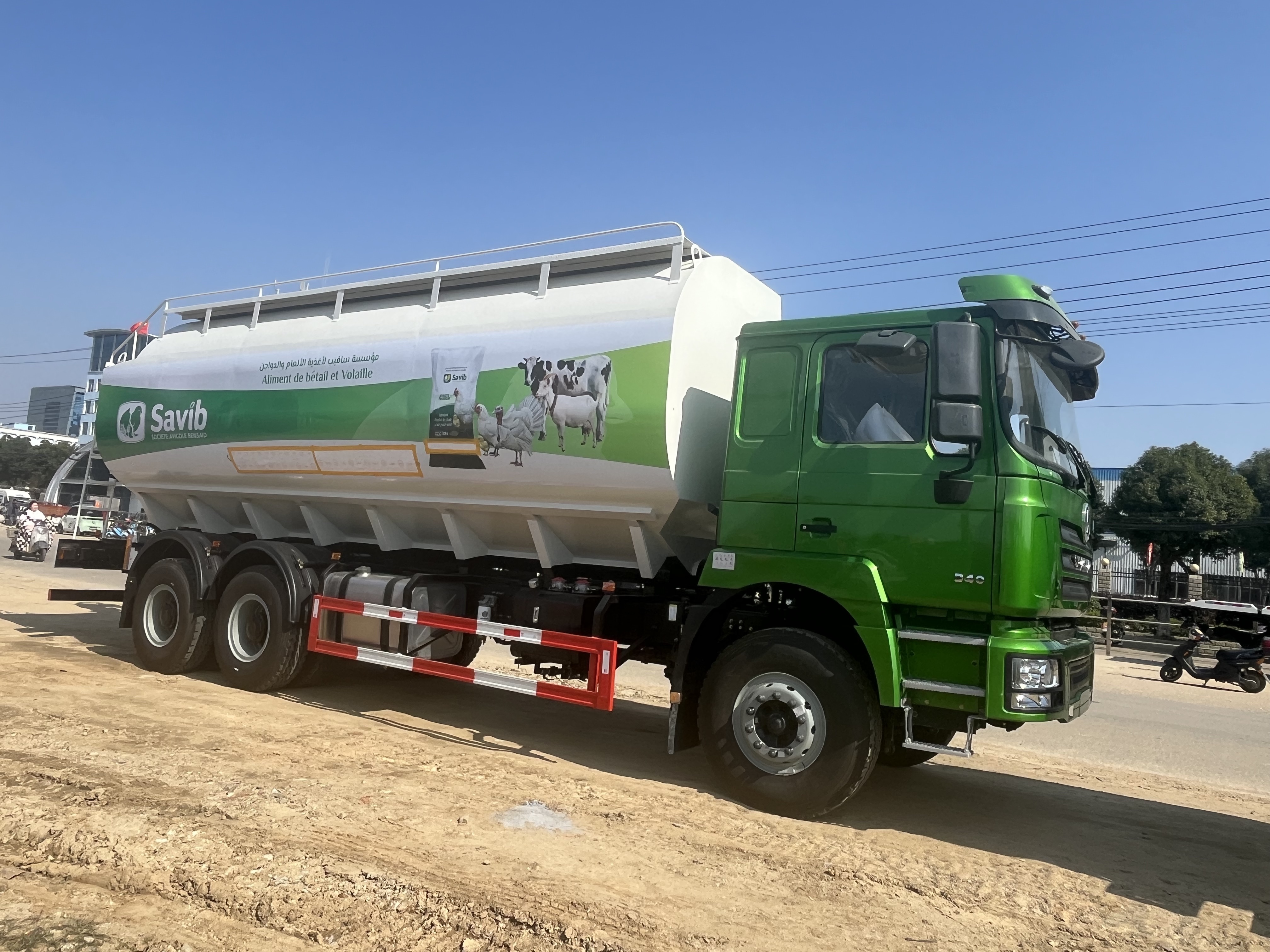

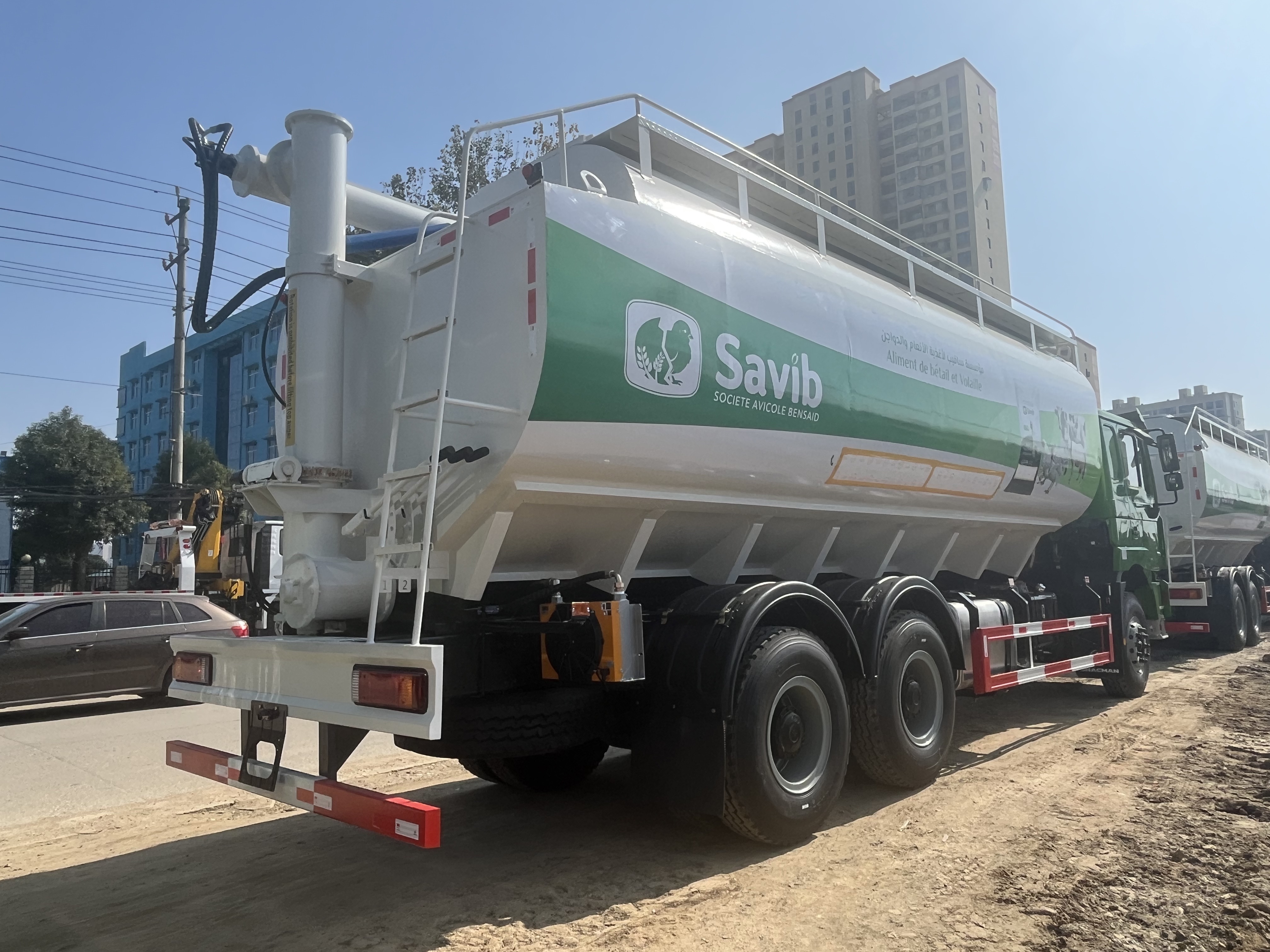

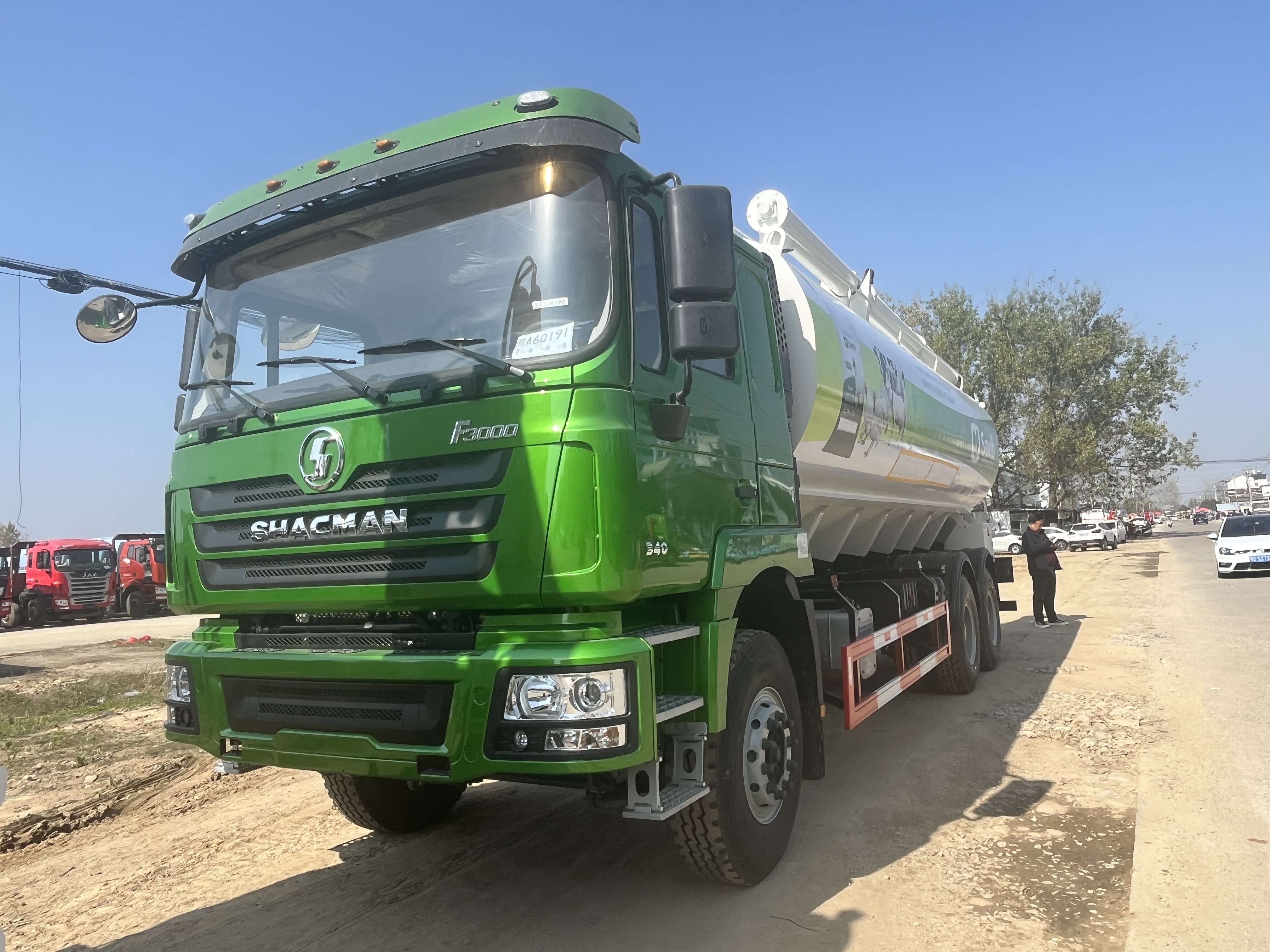

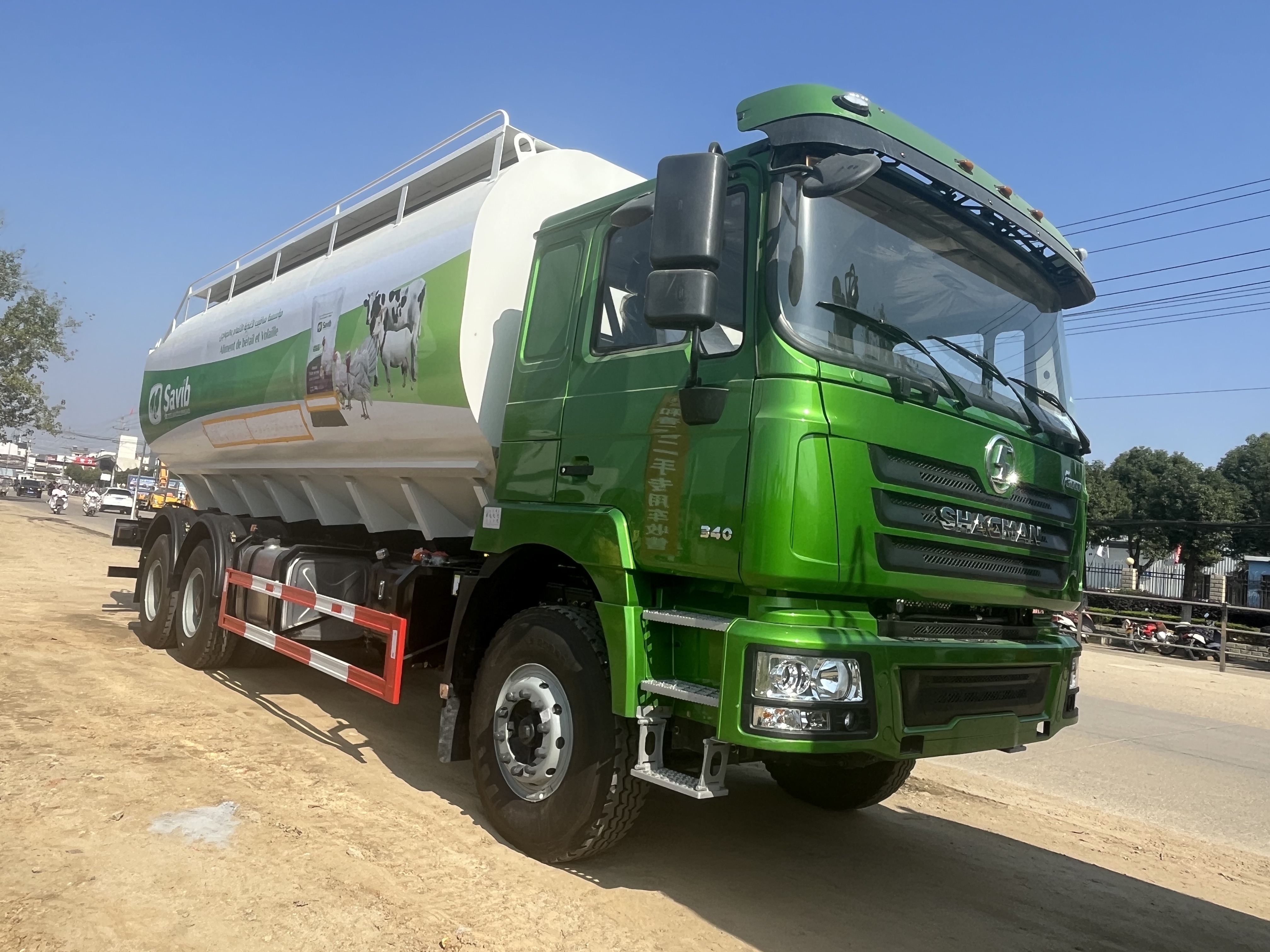

Look at the finished pictures of SHACMAN H3000 bulk feed trucks are as below.
shacman bulk feed truck for sale
The feed tank of the hydraulic bulk feed truck is mounted on the truck chassis. The specialized equipment consists of the tank assembly, the conveying system (comprising horizontal, vertical, and movable unloading systems), the hydraulic system, the electric system, and the pneumatic compartment mechanism. The hydraulic system features a high-pressure oil pump connected via pipelines to a distribution valve; the three output ports of this valve connect to a slewing hydraulic motor, a lifting cylinder, and the hydraulic motors for the horizontal, vertical, and movable unloading systems connected in series.
A gate is installed at the bottom of the tank, with a horizontal screw conveyor (commonly known as a horizontal auger) mounted underneath. The Power Take-Off (PTO) draws power from the vehicle's transmission to drive the system, which in turn drives the high-pressure oil pump to power the hydraulic system. The hydraulic motor drives the rotation of the blade shaft and blades of the horizontal screw conveyor via a transmission device, discharging the feed through the movable conveying system (commonly known as a movable auger).
A movable unloading auger is positioned horizontally on the roof and can freely rotate and lift. During transport, the top spiral pipe lies flat on the tank roof; during unloading, it is raised so that the discharge outlet at the pipe end aligns with the feed inlet on top of the storage tank at the livestock or poultry farm, completing the unloading process.
The electric auger bulk feed truck is a newly developed product designed for different customer segments to meet the needs of the entry-level market. This truck is not equipped with an onboard generator; instead, the electric auger is powered by a standard 380V three-phase power supply. Its smaller wheelbase allows it to navigate rural roads effectively.
With a high cost-performance ratio, this truck is highly favored by customers and is suitable for small-scale farms and feed mills with narrow road conditions. It adopts a mechanical spiral unloading method, offering fast unloading speeds and the ability to operate continuously, which greatly improves production efficiency. The tank can be divided into two to four compartments to load different types of feed simultaneously. All components feature a simple structure, making them easy and flexible to operate, as well as easy to maintain.
