Isuzu soft curtains van truck for sale
the advantages of soft curtains van truck are as below:
Lightweight yet incredibly tough,
highly efficient for loading and unloading,
packed with premium details,
globally adaptable,
Built with solid,
durable materials,
the tarpaulin is wear-resistant,
waterproof, and anti-aging.

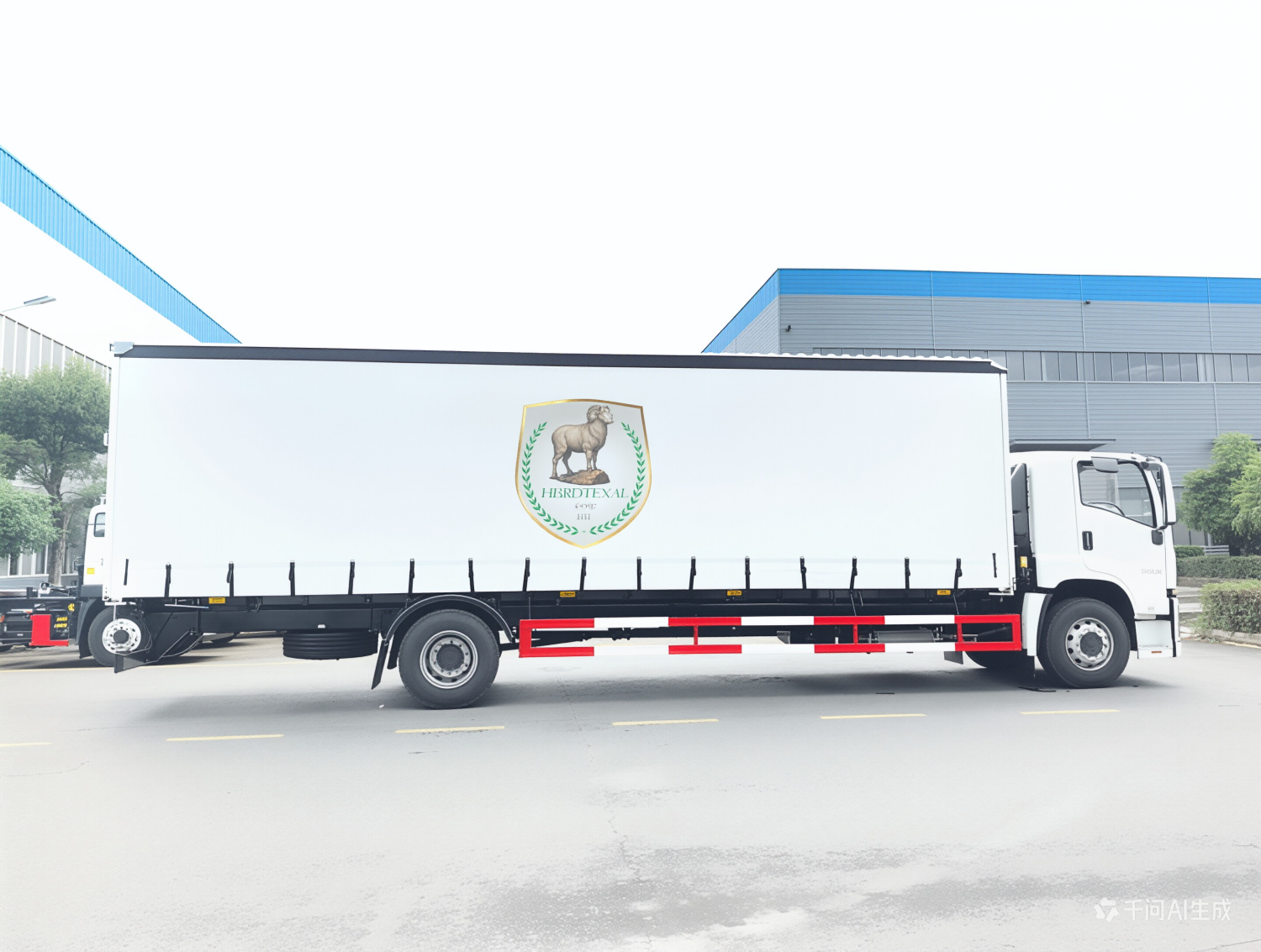

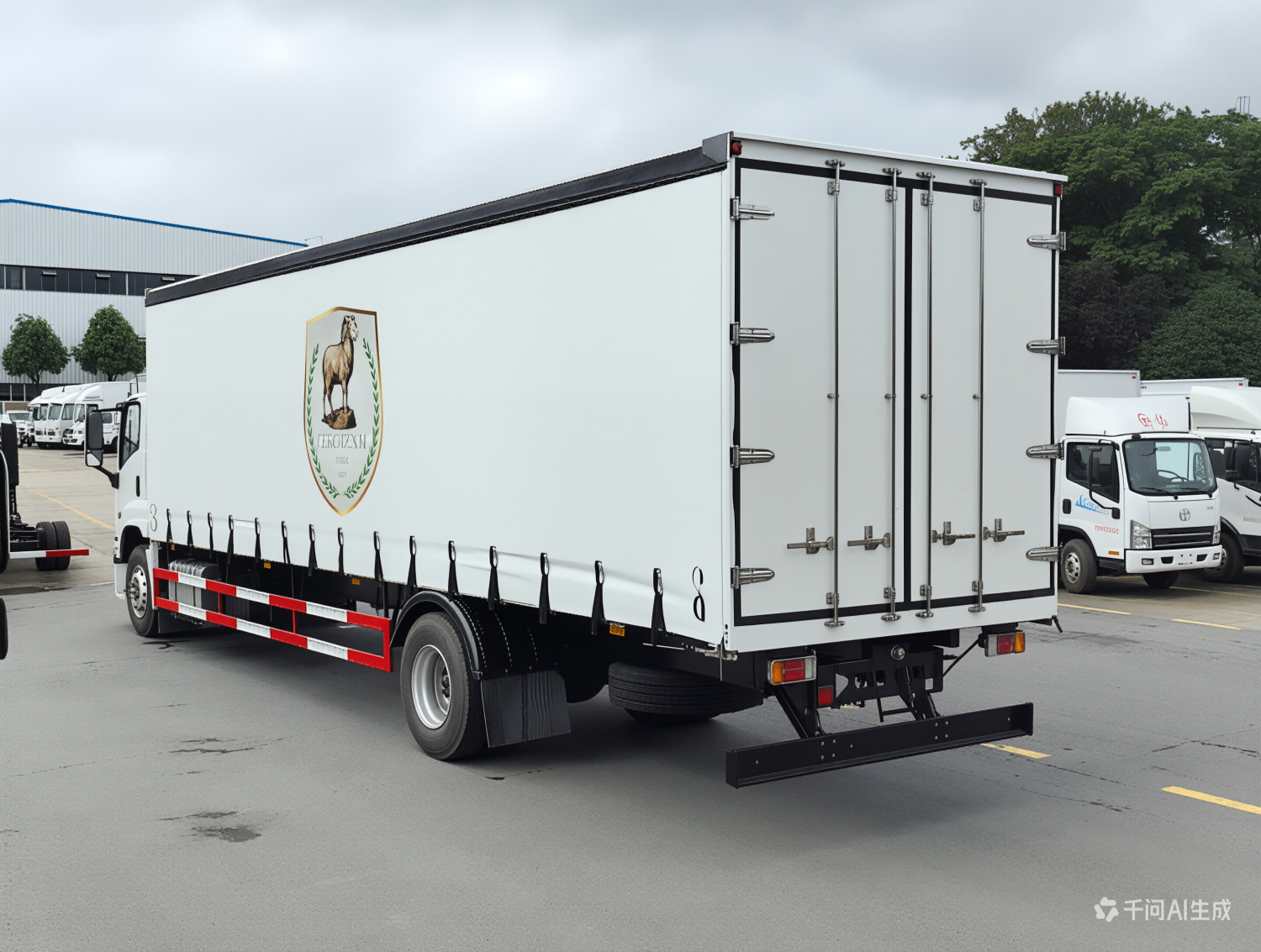

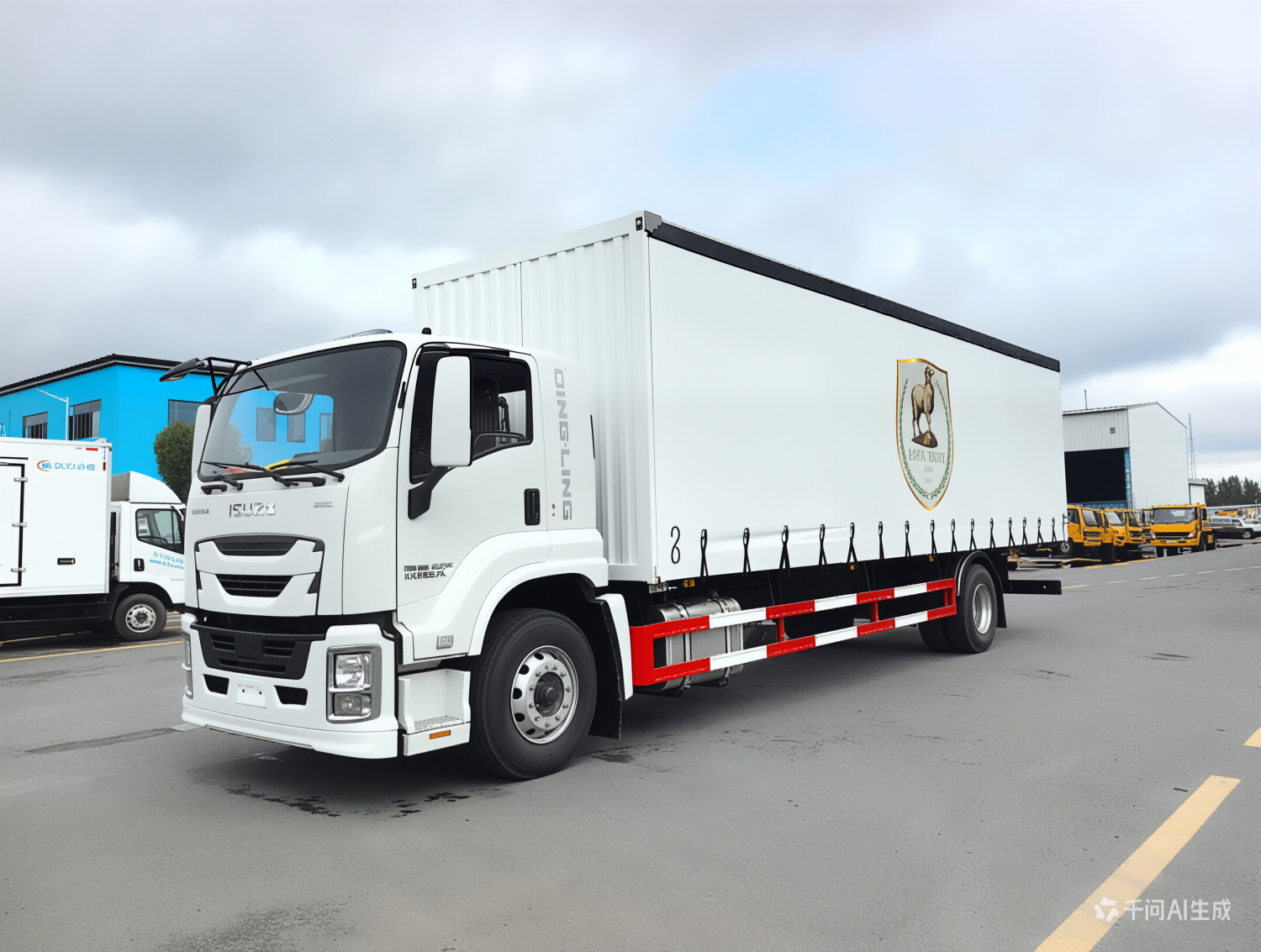

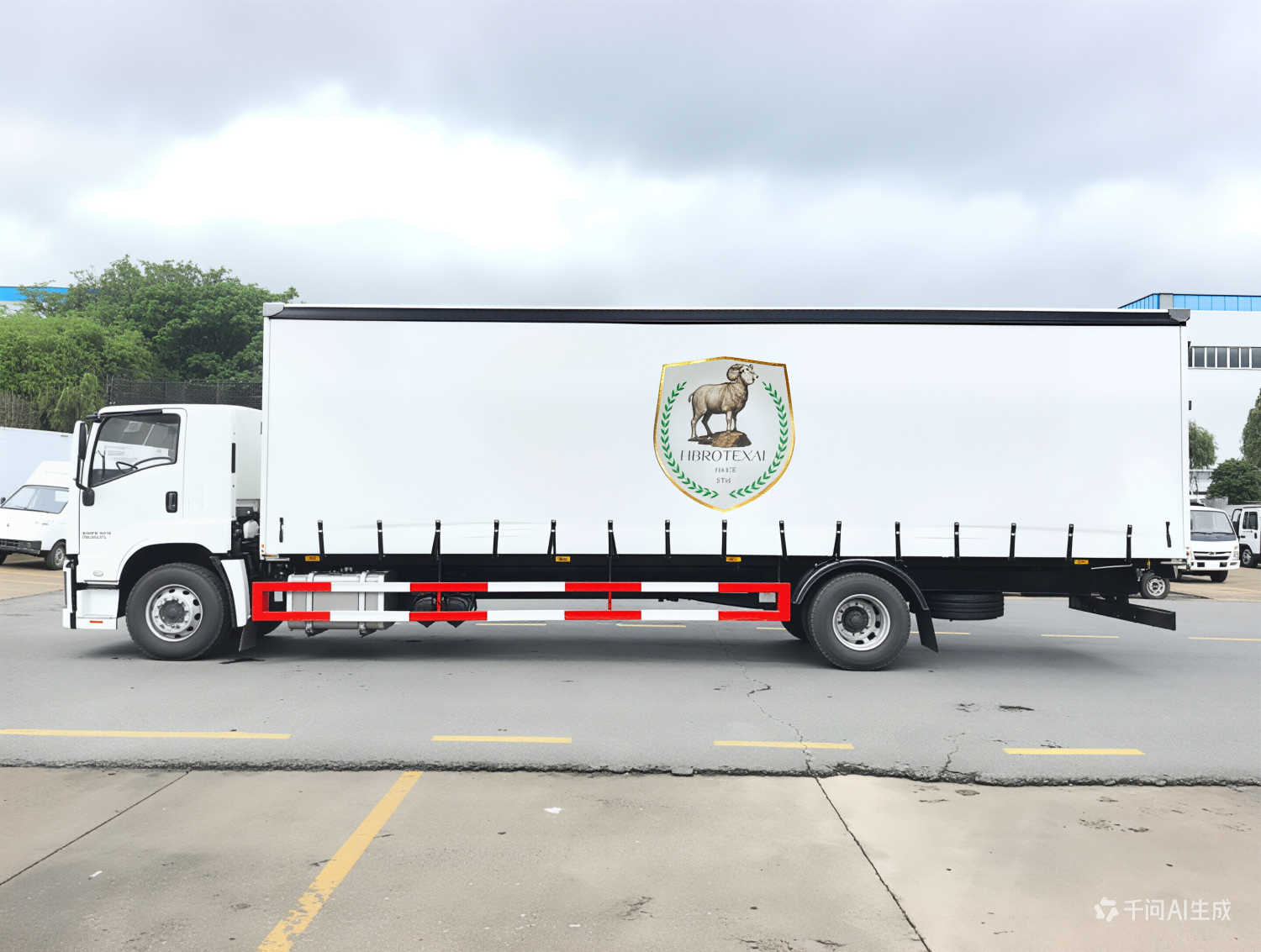

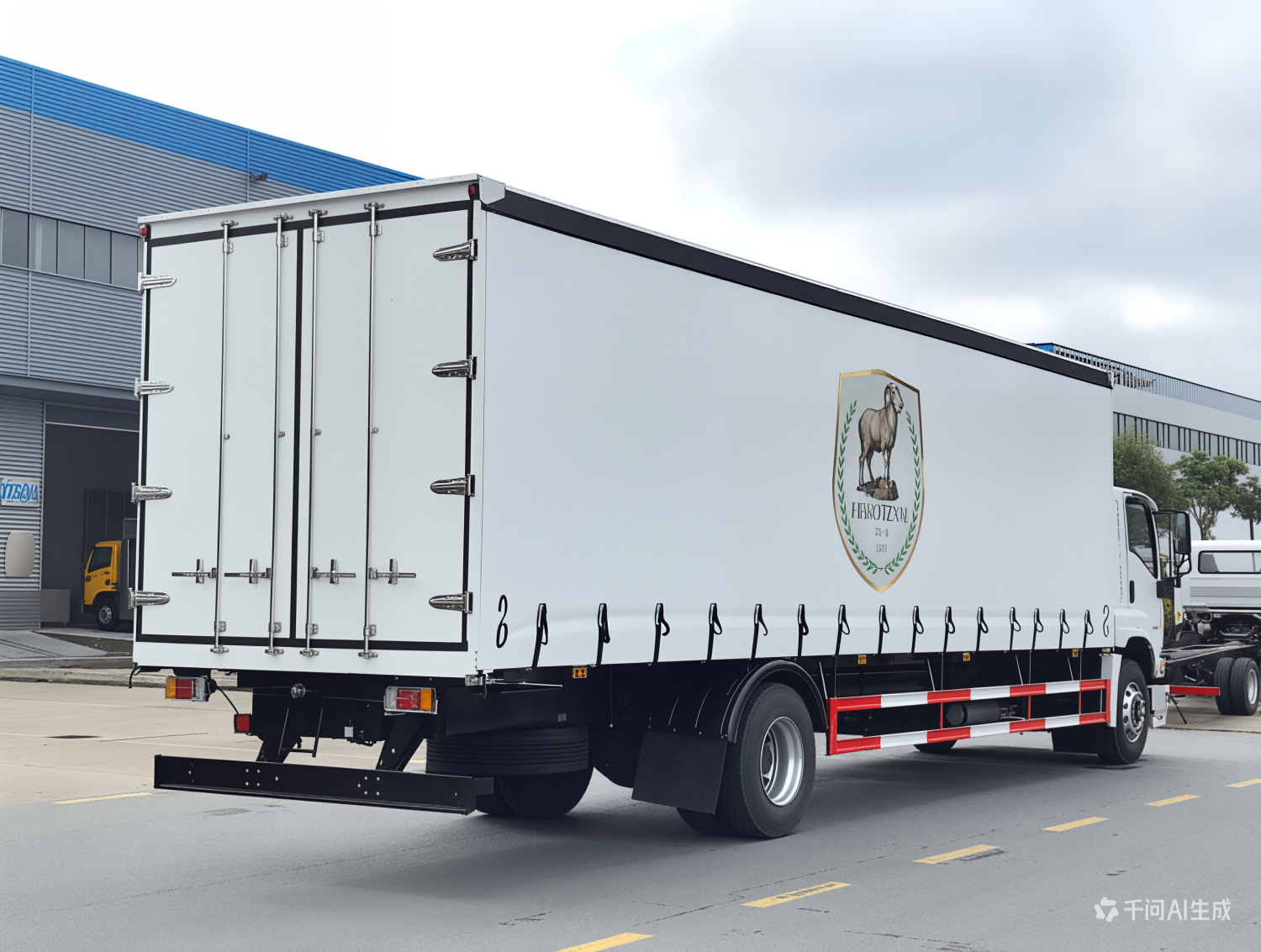

More pictures of ISUZU tarpaulin van truck are as below:
ISUZU van cargo truck for sale
main technical parameters of ISUZU van truck is as below.
Product name | Isuzu soft curtains van truck | |
Truck parameters | Overall dimension(mm) | 8995*2550*3950 |
Box dimension(mm) | 6800*2450*2400 | |
Gross weight (kgs) | 18000kgs | |
Color | Customized | |
Chassis details | Model | QL1180JQFRCY |
Chassis Brand | Isuzu | |
Cab | Single row cabin,power steering;three passengers, | |
Front passenger | 3 | |
Drive style | 4*2 | |
Wheelbase | 5000mm | |
Load capacity | 12 T | |
Steering wheel | Left hand drive | |
Tyre | 295/80R22.5 18PR, 6pcs with 1 spare | |
Max.Speed | 100km/h | |
Engine | Model | Isuzu 4 H K1-T CG61 |
Fuel type | Diesel type | |
Horse Power | 150kw/205hp | |
Displacement | 5200ml | |
Emissions standard. | Euro IV | |
Gearbox | Model | Isuzu MSB |
Gear | 6 forward,1reverse,manual operated | |
Container parameters | Box dimension | 6800*2450*2400 |
Front Material | 1. Front panel material is iron 2. Side panel material aluminum alloy, height 500MM 3. Framework: Assembled with high-strength bolts 4. With grooves for installing and inserting wooden poles | |
Rear Material | 1. Carbon Steel 2. Rear of cargo compartment: double door 3. Equipped with stainless steel accessories and stainless steel frame 4. Insertion: Wood, kept in a detachable state | |
Roof Material | 1. Sunshade material 2. White PVC coating, transparent 3. Top and side tarpaulins slide | |
Bottom Plate Material | plywood, plywood thickness: 25mm | |
Notes | The truck chassis is with air conditioning, steering assistance, central locking, electric glass, multifunctional LCD instrument panel, and ABS, etc. | |
Curtain Sider Trucks (also known as soft curtain or tarpaulin trucks) are highly popular in logistics and transportation. Their core benefits revolve around three key aspects: reducing costs, increasing efficiency, and maximizing payload.
1. Extremely High Loading/Unloading Efficiency (Open on Three Sides)
Both the sides and the rear of a curtain sider can be fully opened, breaking the limitation of traditional box trucks that can only be loaded from the back. Forklifts can load and unload directly from the side, which drastically cuts down operation time. This makes it perfect for scenarios requiring multi-point delivery or rapid turnover.
2. Significantly Reduced Logistics Costs (Lightweight Design)
Since the side walls use soft curtain materials like high-strength PVC-coated fabric instead of heavy metal bodies, the truck's curb weight is exceptionally light. This means the vehicle can carry more cargo legally (typically an extra 2-5 tons) and consumes less fuel when running empty.
3. Increased Cargo Volume (Haul More)
The curtain side structure offers highly flexible space utilization. Compared to traditional metal containers, curtain siders usually offer a 12% to 30% increase in effective cargo volume. This is particularly advantageous for transporting light and bulky goods (such as furniture, textiles, and cartons).
4. Durable and Excellent Protection
Although it looks like "fabric," modern curtain siders use professional-grade tarps (such as knife-coated PVC) that are high-strength, wear-resistant, waterproof, and anti-aging. Not only does it protect cargo from wind, rain, and sun just like a standard container, but the large surface area of the curtain can also be printed with logos, acting as a mobile billboard.
5. Strong Global Adaptability
This truck model is already extremely common in Europe and is currently being heavily promoted in domestic markets and international logistics routes (such as cross-border transport in Xinjiang). It is a vehicle type that aligns perfectly with global transportation trends.
In short, the curtain sider truck is an all-around transport tool that is "lightweight, high-capacity, fast-loading, and fuel-efficient."
We welcome more and more clients come to visit our company and purchase our trucks. The contact way: +86 13329899995.
